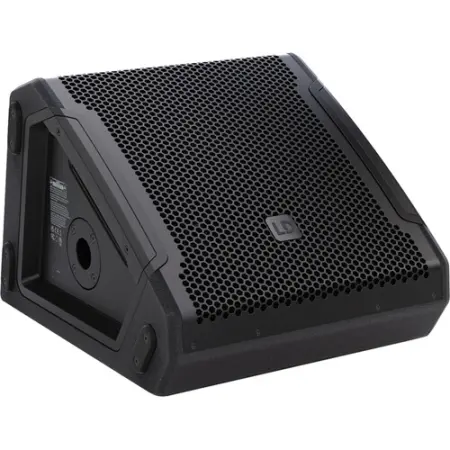

Enjoy professional quality sound reproduction with the LD Systems MON 10 A G3, a compact, powered stage monitor that can double as a main PA speaker, well suited for bands, performers, DJs, and singer-songwriters. The MON 10 A G3 delivers a powerful and precise sound, thanks to the 300W RMS (1200W peak) Class-D amplifier that powers the 10" woofer and 1" high-frequency driver. The drivers are arranged in a coaxial design for true point-source performance and provide a frequency response of 72 Hz to 18 kHz with a peak SPL of 126 dB.

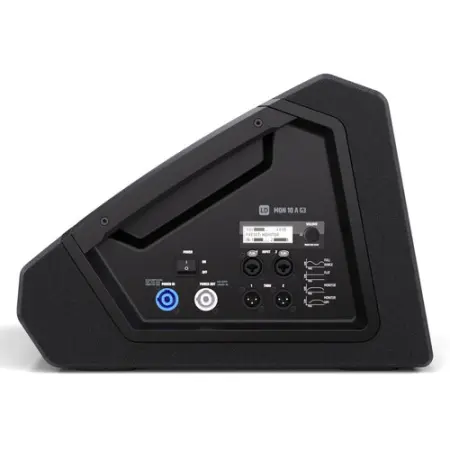

The rugged enclosure is made from birch plywood and features a resistant polyurea coating. The side of the speaker features two combo XLR-1/4" inputs and XLR-thru outputs, as well as two powerCON power connectors for daisy-chaining to other monitors. The second generation DynX DSP provides four application presets, a 3-band EQ, tunable notch filter, and an alignment delay. The other side of the speaker features a 35mm pole flange for raising the speaker on a stand to be used as a main PA. The MON 10 A G3 ships with a powerCON power cord.
At a Glance
Compact high-performance stage monitor with top-of-the-range technologies
Class-D power amplifier with 300W RMS / 1200W peak and 126 dB max. SPL
Coaxial design for true point source with a 1" titanium-diaphragm HF driver
10" woofer with 2.5" voice coil
Optimized, practical radiation pattern due to 50° x 90° CD horn
DynX DSP (Gen.2) for distortion-free sound even at maximum volume
3-band EQ, notch filter, 4 application presets and delay function
PowerCON compatible loop-through professional power connection
35mm speaker stand flange for FOH applications
Durable polyurea coating and heavy-duty front grille
Highly Efficient Power Amplifier
The highly efficient Class-D power amp delivers 300W RMS. The peak power of 1200W, which can be called up at short notice, guarantees a dynamic, assertive sound image.
Easy Daisy-Chaining
The next monitor can be supplied with power via a second powerCON compatible connection. Thanks to the two XLR outputs, you can also daisy-chain the audio signal to a neighboring stage monitor.
Robust Construction
Heavy-duty birch plywood
The enclosures are made of heavy-duty 15mm birch plywood and coated with durable polyurea. Thus, they reliably withstand many years of hard use on the road
Steel front grille
The extra-strong, torsion-resistant steel grilles effectively protect the speakers
Two die-cast aluminum handles
The two cast aluminum handles, homogeneously integrated into the overall appearance, enable the best possible handling on stage
Recessed connections
The connections and controllers are recessed in steel trays and are thus optimally protected against damage
Noiseless heat sink

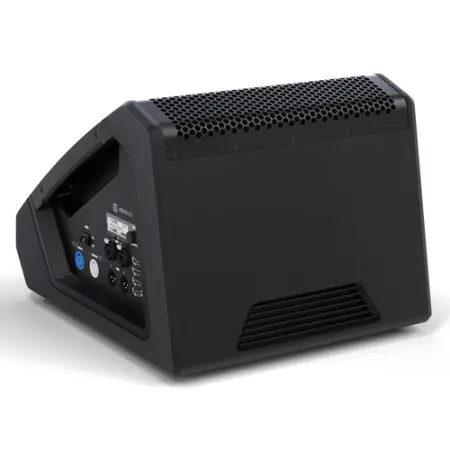

An elegantly designed heat sink on the back of the monitor provides fanless and thus noiseless cooling of the power electronics
DSP Menu
PRESET: Selection of the loudspeaker preset
FULLRANGE
FLAT
MONITOR
MON HPF
3-Band EQ
HIGH EQ Setting the treble frequencies from -10 dB to +10 dB
MID EQ Adjusting the center frequencies from -10 dB to +10 dB
LOW EQ Adjusting the bass frequencies from -10 dB to +10 dB
Notch EQ
NOTCH GAIN Narrow band reduction of a feedback frequency 0 to -12 dB
NOTCH FREQ Setting the feedback frequency from 500 Hz to 10 kHz
SPECIFICATIONS:
Configuration
Active 2-Way
Enclosure Type
Bass-Reflex Floor Monitor
Total Power Capacity
HF / LF:
300 W RMS
600 W Program
1200 W Peak
Show More
HF Driver
1 x 1" / 25.4 mm Tweeter
MF Driver
No
LF Driver
1 x 10" / 254 mm Woofer
Frequency Range
58 Hz to 20 kHz -10 dB
Wireless Connectivity
No
Color
Black
Enclosure Type
Bass-Reflex Floor Monitor
Total Power Capacity
HF / LF:
300 W RMS
600 W Program
1200 W Peak
Amplifier Class
HF/LF:
Class-D
Drivers
HF Driver
1 x 1" / 25.4 mm Tweeter
HF Voice Coil
1.75" / 44.45 mm
MF Driver
No
LF Driver
1 x 10" / 254 mm Woofer
LF Voice Coil
2.5" / 63.5 mm
Magnet
Ferrite
Performance
Frequency Range
58 Hz to 20 kHz -10 dB
Frequency Response
72 Hz to 18 kHz -3 dB
Maximum SPL
126 dB SPL (Peak)
Coverage Angle
50° H x 90° V
Protections
Output Limiter, Overcurrent, Overvoltage, Thermal
Connectivity
Audio I/O
2 x Combo XLR-1/4" 3-Pin Female Balanced/Unbalanced Line Input
2 x XLR 3-Pin Male Balanced Line Thru
Network I/O
No
USB
No
Wireless Connectivity
No
Bluetooth
No
Mobile App Compatible
No
*As of October, 2023: Check with manufacturer for the most up-to-date compatibility
Signal Processing
Crossover
1700 Hz (Active)
EQ
Yes
Parametric EQ
No
Semi-Parametric EQ
No
Filters
1 x Notch/Band-Pass
Dynamic Processing
Limiter
Alignment Delay
Yes
Phase Adjustment
No
Digital Signal Processing
Venue Settings
Power
AC Input Power
100 to 240 VAC, 50 / 60 Hz
AC Power I/O
1 x powerCON Input
1 x powerCON Output
Physical
Color
Black
Mounting
1 x 1.4" / 35 mm Pole Socket
Mounting/Monitor Angle
33° (As Floor Wedge/Monitor)
Handles
2 x Side
Environmental Protection
No
Construction Material
Plywood
Dimensions
to 16.815 x 12" / to 38 x 30.5 cm
Weight
33.5 lb / 15.2 kg
