Compact Powered Coaxial Speaker for Installed Sound Systems
The

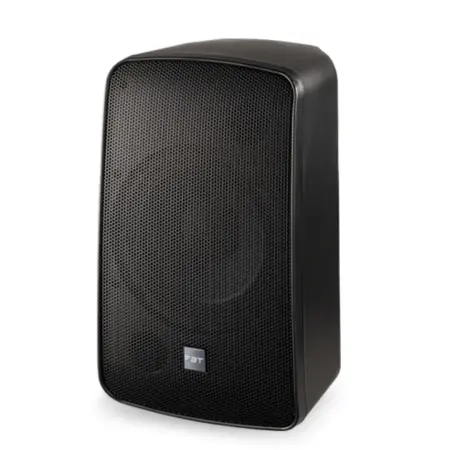

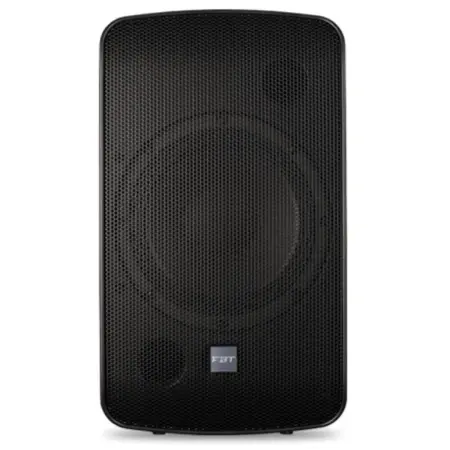

FBT Canto 5CA is a compact, powered 2-way speaker specifically designed for permanent indoor installations. Featuring a coaxial 5" woofer and 1" dome tweeter, this speaker delivers precise, full-range sound in a low-profile form. With built-in DSP, Class-D amplification, and versatile mounting options, the Canto 5CA is ideal for retail, hospitality, conference rooms, and other commercial applications.
FBT Canto 5CA Competitive Differences
- Custom coaxial 5” LF driver with 1.5” voice coil and 1” HF dome tweeter with 1” voice coil
- Integrated Class-D amplifiers: 100W LF + 50W HF
- Dynamic DSP processing with 4 selectable presets
- 90° coverage angle for wide dispersion
- Polypropylene gas-injected molded cabinet to reduce resonance
- Auto standby function for energy saving
- Universal voltage switch-mode power supply
- Compact size and lightweight design for discreet installations
- Available in black or white finish
FBT Canto 5CA Description
The
FBT Canto 5CA is part of FBT’s Canto Install series, engineered for architectural and commercial integration. At its core is a coaxial speaker design that ensures accurate phase alignment and consistent sound across the frequency range. This active speaker includes a 100W + 50W Class-D amplifier and on-board DSP that offers four selectable presets, allowing users to tailor output to specific environments or applications.
Its cabinet is crafted from gas-injected polypropylene, chosen specifically for its acoustic neutrality and structural integrity. The enclosure design includes internal shaping to suppress resonances and provide pure, articulate sound reproduction. The Canto 5CA includes practical installation features like a dedicated mounting bracket and a 25mm top-hat socket for temporary setups.
With energy-efficient operation, high SPL output (up to 117dB peak), and input flexibility via XLR loop-through, this speaker brings both performance and convenience to the installation market.
Canto 5CA Features
- Coaxial 2-way design with 5" LF and 1" HF dome tweeter
- Class-D amplification (100W LF + 50W HF)
- 4 onboard DSP presets
- 90° conical dispersion
- XLR input and link output
- Volume control and HP filter switch
- Auto standby mode for energy efficiency
- Status LED indicator
- Available in black or white
- Installation bracket included with multi-angle adjustment
- 25mm pole mount socket
Canto 5CA Specifications
- Configuration: 2-way coaxial
- Amplification: 100W LF + 50W HF Class-D
- Frequency response: 70Hz – 20kHz (-6dB)
- Max SPL (continuous/peak): 114 / 117 dB
- Dispersion: 90° (HxV)
- Input impedance: 22 kOhm
- Input connector: XLR with loop output
- Power cord length: 16.4 in (5m)
- Net dimensions (W x H x D): 6.29 x 10.86 x 6.69 in (160 x 276 x 170 mm)
- Net weight: 5.95 lb (2.7 kg)
- Shipping dimensions (W x H x D): 8.5 x 15.35 x 8.1 in (215 x 390 x 205 mm)
- Shipping weight: 8.6 lb (3.9 kg)
FBT USA Canto 5 CA
(FBT CANTO 5CA (Black))
