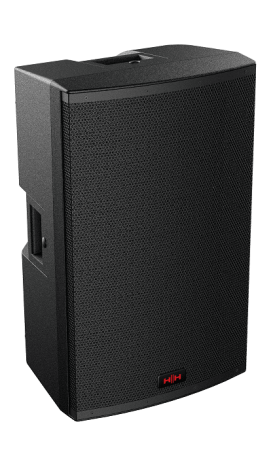

The Tensor TRE-1501’s design has been tailored to deliver unparalleled performance to meet your requirements. The high-grade class D bi-amplifier provides output without restrictions and the intelligent on-board DSP protects your system from failure. With it’s 4 audio modes, the TRE-1501 is customisable to your requirements, whether that’s DJ, live band, monitoring or announcements, the TRE-1501 has you covered with the press of a button. The integrated 2 channel mixer ensures that your devices are connected without constraints. All this contained in an ultra lightweight, multi-angle enclosure that includes 3 moulded carry handles and 4 m8 suspension points. The HH tensor TRE-1501 – delivering performance and reliability.
SPECIFICATIONS:
Power
1400W Peak
Frequency Response
41 - 20kHz
Max SPL (1M) (Peak)
131dB
LF Driver
15 Inch HH designed professional low mid driver featuring imported glass reinforced cone
HF Driver
1.33 Inch Compression Driver
Coverage
90°H x 60°V
Crossover Frequency
2.5kHz
Inputs
2 x Balanced Combi XLR/1/4" Jack connectors
Outputs
1 x Balanced XLR Mix Output
Indicators
Power, Clip Indicator, EQ Mode, Front illuminated logo
EQ
User selectable performance presets for Music, Live, Monitor, Vocal
DSP
Crossover, EQ, Dual Band Limiters, Phase and Time Optimisation
Protection
Comprehensive protection and clip free limiting + clip indicator
Controls
2 x channel gain, Master Volume, logo on/off, Ground Lift, EQ Mode
Cabinet
Robust polypropylene cabinet with three handles and 45° monitor angle
Finish
Black
Grille
Heavy Gauge powder-coated steel, Black with acoustic foam backing
Pole Mount
35mm Distance pole socket
Flying Points
4 x M8 Mounting Points
Unit Dimensions (Hwd)
694 x 420 x 385mm, 27.3" x 16.5" x 15.2"
Unit Weight
18Kg, 39.7 lbs
Carton Dimensions (Hwd)
775 x 500 x 465mm, 30.5" x 19.7" x 18.3"
Packed Weight
21.4Kg, 47.2 lbs
