Yamaha DBR12 12" Active Speaker
1,000W Bi-amplified Active Speaker with 12" LF Driver, 1.4" HF Driver, Onboard Mixer, and DSP (each)
A Portable, High-performance PA Speaker from Yamaha
Able to withstand 131dB SPL, the Yamaha DBR12 12" active speaker gives you an accurate, controlled performance. Using the latest DSP, Yamaha applied their FIR-X tuning to optimize the sound and protection algorithms of the DBR12, providing you with plenty of muscle, despite this active speaker's rather diminutive size. Incredibly versatile, you can use the DBR12 as a great-sounding main speaker or as a high-performance floor monitor with a quick flick of the Yamaha DBR12 12" active speaker's D-Contour switch. A switchable highpass filter also makes it easy for you to add a subwoofer to your rig.
Yamaha DBR12 12" Active Speaker Features at a Glance:
FIR-X tuning delivers excellent sound quality with high resolution and a smooth frequency response

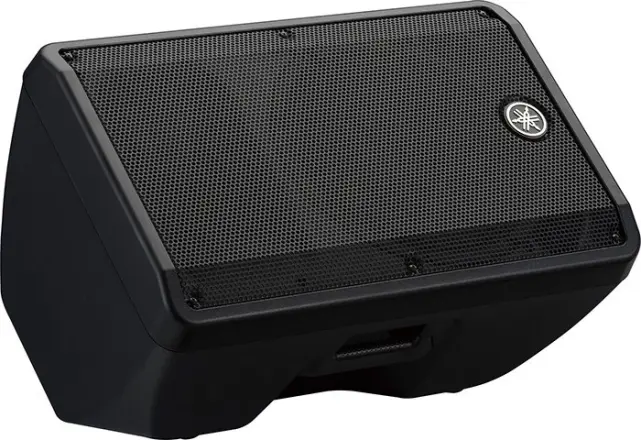

D-Contour optimizes the DBR12 for main speaker or floor monitor use
Onboard mixer lets you select either a direct output or a mixed output
Comprehensive inputs for mixer, musical instrument, or media players
Amplifier and power supply design provides powerful output from a compact speaker
DSP-controlled protection functionality promotes optimum reliability
The Yamaha DBR12 is a portable, high-performance 12" active PA speaker!
Tech Specs
Powered Yes
Power Configuration Bi-amped
LF Driver Size 12"
HF Driver Size 1.4"
LF Driver Power Amp 800W
HF Driver Power Amp 200W
Total Power 1000W
Frequency Range 52Hz-20kHz (-10 dB)
Crossover Frequency 2.1kHz
Maximum Peak SPL 131dB
Horizontal Coverage Angle 90 Degrees
Vertical Coverage Angle 60 Degrees
Enclosure Material Plastic
Mounting Options Pole, Floor Wedge
Inputs 2 x XLR/TRS Combo, 1 x stereo RCA
Outputs 1 x XLR
Height 23.7"
Width 14.8"
Depth 13.7"
Weight 34.8 lbs.
