High-Performance 12" Powered Coaxial PA Speaker
The

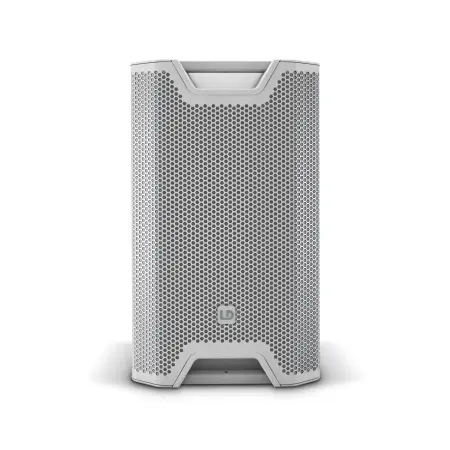

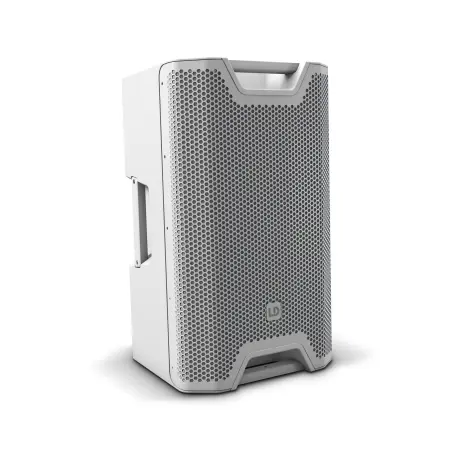

LD Systems ICOA 12 A W is a versatile, full-range powered PA loudspeaker designed for professional audio applications. With its coaxial design, horn-loaded woofer, and powerful class-D amplifier, this 12" speaker delivers outstanding sound quality with deep bass, making it ideal for DJs, musicians, bands, and event professionals. Its white finish allows it to blend seamlessly into any environment without distraction.
LD Systems ICOA 12 A W Competitive Differences
- 126 dB max SPL with 1200W peak power for high-output performance
- Horn-loaded woofer delivers exceptional bass response
- Coaxial design with rotating, BEM-optimized CD horn for flexible horizontal and vertical use
- DynX DSP with 4 presets, 3-band EQ, and delay function for precision sound tuning
- Two mic/line input channels with independent gain controls and a mono mix output
- 36mm dual tilt stand mount with 0° and 5° tilt options for adaptable placement
- 55° monitor angle for stage monitoring applications
- Shock-resistant front grille for enhanced durability
- Six M10 flying points for secure suspension in fixed installations
- Four ergonomic aluminum handles with rubberized grips for easy transport
LD Systems ICOA 12 A W Description
The
LD Systems ICOA 12 A W is an all-in-one solution for high-quality sound reinforcement. Whether used as a full-range speaker, satellite, or floor monitor, it delivers excellent clarity and depth, even at low frequencies, eliminating the need for a subwoofer in many applications. Its class-D amplifier ensures efficient power delivery while the DynX DSP processing provides precise control over EQ, delay, and presets to adapt to different environments.
The rotating CD horn allows the speaker to be used in both horizontal and vertical orientations, making it perfect for installed sound systems, live performances, and mobile DJ setups. With two input channels featuring independent gain controls, it can accommodate various audio sources, from microphones to line-level signals. A robust polypropylene cabinet, reinforced front grille, and multiple mounting options ensure durability and installation flexibility.
ICOA 12 A W Features
- 12" powered coaxial PA loudspeaker with full-range performance
- 126 dB max SPL and 1200W peak power for high-impact sound
- Horn-loaded woofer with deep bass response
- Rotating BEM-optimized CD horn for horizontal and vertical use
- DynX DSP technology with 4 presets, 3-band EQ, and delay function
- Two line/mic input channels with separate gain controls
- Mono mix output for expanded connectivity
- 55° monitor angle for stage applications
- 36mm dual tilt stand mount with 0° and 5° tilt angles
- Six M10 flying points for installation flexibility
- Shock-resistant front grille for protection
- Four aluminum handles with ergonomic rubber grips for easy transport
ICOA 12 A W Specifications
- Type: Powered PA loudspeaker
- Color: White (RAL 9003)
- Woofer Size: 12" (304.8 mm), ferrite magnet
- HF Driver: 1" (25.4 mm), ferrite magnet, 1.4" (35 mm) voice coil
- Amplifier: Class D
- Dispersion (H x V): 90° x 50°
- System Power (RMS): 300W
- Peak Power: 1200W
- Frequency Response: 48 Hz - 20 kHz
- Crossover Frequency: 2 kHz
- Max SPL (Peak): 126 dB
- Protection Circuits: Multiband limiter, over-voltage, over-current, thermal overload

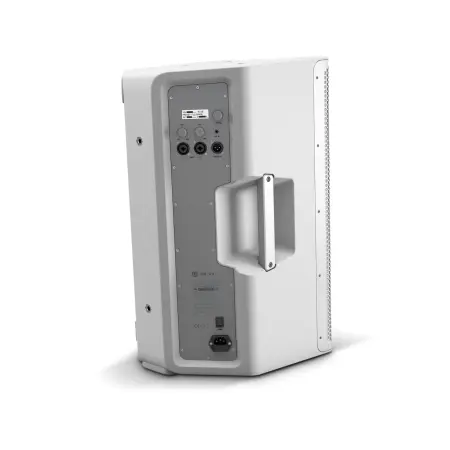

- Controls: 2 x gain, on/off switch, rotary/push encoder
- Indicators: LC display
- Inputs: 6.3 mm jack combo sockets (XLR, TRS), 3.5 mm TRS
- Outputs: 1 x 3.5 mm TRS
- Power Supply: SMPS, 100V - 240V AC, 50 - 60 Hz
- Power Consumption: 150W
- Operating Temperature: 0 - 40°C
- Humidity: < 80% (non-condensing)
- Cabinet Material: Polypropylene, bass reflex design
- Mounting: 36mm flange (0°, 5°), 6 x M10 flying points
- Monitor Angle: 55°
- Dimensions (W x H x D): 375 mm x 635 mm x 396 mm
- Weight: 19.95 kg (44 lbs)
- Included Accessories: Power cord
LDS ICOA 12 AW
(LD Systems ICOA 12 A White)
