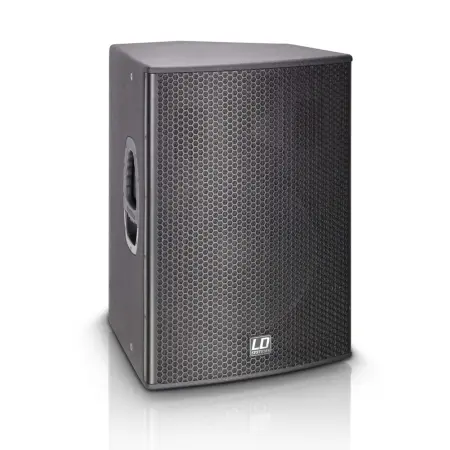

LD Systems Stinger 15A - EB152AG2

STINGER 15 A G2

15" active PA Speaker

Stinger 15 G2 Active Full-Range Speaker

The Stinger 15 G2 is an active, 2-way full-range speaker with numerous potential applications, whether in a portable PA system, as a monitor or in permanent installations.

The built-in Hypex Ucd400 Class D power amp delivers 1600W / 4 ohms Peak power to a 15" woofer and a 1" BMS HF compression driver, which ensure an outstanding sound and an extremely high maximum sound level pressure of 120dB (134dB peak). It is connected using XLR/jack combo connectors and an XLR output. Passive speakers or subwoofers can be driven in parallel via a Speakon-compatible power amp output. An onboard 2-band EQ is provided for perfect tone control.

The hardware of the bass reflex cabinet made of sturdy multiplex includes a stand support six M8 mounting holes for flyware, and the innovative LD "Evolutive" handles. The new handles offer a comfortable grip from all sides for secure carrying. Mounting brackets and a protective cover are available as accessories.

Specifications

• Product number: LDEB152AG2
• Product type: PA loudspeaker
• Type: active
• Low/mid driver dimensions: 15"
• Low/mid driver dimensions (mm): 381mm
• Woofer magnet: Ferrite
• Woofer brand: Custom-made
• Woofer voice coil: 3"
• Woofer voice coil (mm): 76.2mm
• Horn: CD horn
• HF driver dimensions: 1"
• HF driver dimensions (mm): 25.4mm
• HF driver magnet: Ferrite
• HF driver brand: BMS
• HF driver voice coil: 1"
• HF driver voice coil (mm): 25.4mm
• Amplifier: Class D, Hypex Ucd400
• Dispersion (H x V): 100 x 55°
• RMS: 400W
• Peak power: 1600W
• Frequency response: 50 - 19000Hz
• Crossover frequency: 1800Hz
• Max. SPL (continuous): 120dB
• Max. SPL (peak): 134*dB
• Protection circuits: HF Driver, over-current, over voltage
• Input sensitivity: - 5dBu
• Controls: Mic Gain, Power, Bass, volume, Line Gain, Treble
• Indicators: limit, Power, signal, protect (protection circuit engaged)
• Line inputs: 1
• Line input connectors: 6.3 mm Jack, XLR
• Mic inputs: XLR, 6.3 mm Jack
• Line outputs: 1
• Line output connectors: XLR
• Loudspeaker outputs: 1
• Speaker output connections: Speakon compatible
• Minimum impedance of connected speakers: 8Ohm(s)
• Operating voltage: Switching Power Supply, 220 V AC - 240 V AC, 50-60 Hz
• Cabinet material: 15 mm Plywood
• Cabinet surface: texture paint
• Cabinet construction: vented
• Monitor angle: 54°
• Width: 480mm
• Height: 650mm
• Depth: 460mm
• Features: Short Term Max. SPL Peak @ 1m with Pink Noise, 6 x M8 flying points, flange, LD Systems "Evolutive" handles
• Weight: 28.5kg

LD System EB 152AG2 (LD Systems EB-152AG2)
