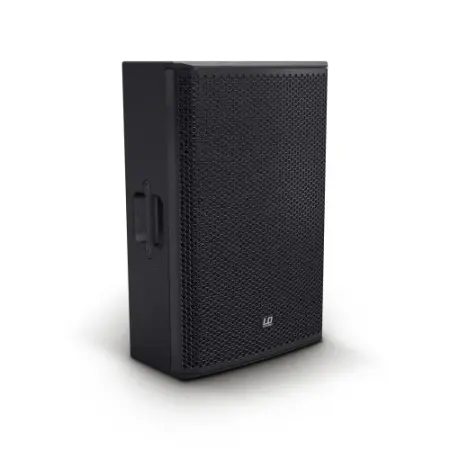

LD Systems Stinger 15A G3

STINGER 15 A G3
Active 15" 2-way bass-reflex PA speaker
Item No.: LDEB152AG3

Features:

Active 15" 2-way bass-reflex PA speaker
133 dB max. SPL and 500-watt RMS performance with a highly-efficient digital amplifier
Perfect all-rounder for full-range, satellite and monitor applications
Practical presets for fast and user-specific frequency tuning
Homogeneous dispersion pattern thanks to a BEM-optimised tweeter wave guide
15" custom woofer and BMS tweeter driver
Distortion-free sound at even maximum volumes, thanks to DynX® DSP technology
2 line/mic input channels with individual gain controllers plus mono mix output
15 mm birch plywood housing with ultra-robust polyurea coating and M10 rigging points
Shock-resistant front grille for optimal protection of the speaker.
36 mm dual tilt stand attachment with 0° and 5° tilt angle
Extensive and smart accessories for installation and transport

This highly professional 2-way active system is designed for absolute, long-term reliability. With its multi-functional bass reflex housing and finely tuned, user-friendly presets, the speakers are suitable as full-range, box, satellite and floor monitors. The Stinger® 15 A G3 is powered by a highly efficient Class-D amplifier with an impressive 500-watt continuous output. The specially developed 15" woofer and a BMS tweeter driver achieve a deep bass response and fresh, natural trebles. The wave guide of the tweeter has been developed using the Boundary Element Method (BEM), a numerical simulation of the sound radiation and dispersion. It reduces reflection from floors and ceilings and prevents sidelobe levels, thus achieving controlled and homogeneous dispersion.

LD Systems’ proprietary DynX® DSP technology means that the Stinger® 15 A G3 delivers perfect performance with maximum clarity and power under all conditions. The signal processing of the crossover function and the multi-band limiter achieve an optimal runtime and high freedom from distortion. Designed as an all-around workhorse, the housing of the speaker is made of robust birch plywood. An extremely resilient coating of polyurea offers exceptional robustness and durability. The features include a steel front grille, a dual-tilt stand attachment, flight points and ergonomic handles. The Stinger® 15 A G3 is a good value and attractive solution for professional sound systems, with extensive accessories that support usage on the stage and in fixed installations.

Specifications:

Product type PA loudspeaker
Type active
Low/mid driver dimensions 15 "
Woofer size 381 mm
Woofer magnet Ferrite
Woofer brand Custom-made
Woofer voice coil 3 "
Woofer voice coil (mm) 76.2 mm
Horn BEM optimized CD Horn
HF driver dimensions 1 "
HF Driver Size 25.4 mm
HF driver magnet Ferrite
HF driver brand BMS
HF driver voice coil 1 "
HF Driver Voice Coil 25.4 mm
Amplifier Class D
Dispersion (H x V) 90 x 50 °
RMS 500 W
Peak power 1000 W
Frequency response 50 - 20000 Hz
Max. SPL (peak) 133 dB
Protection circuits Multiband limiter , over voltage , over-current , thermal overload
Input sensitivity -5 dBu
Controls 2 x gain , 2 x Mic/Line , Mode
Indicators Limit , Mic , Mode , On , Protect (protection circuit engaged) , Signal
Line inputs 2
Line input connectors 6.3 mm jack , XLR
Line outputs 1
Line output connectors XLR
Operating voltage 100 - 120 V / 50 - 60 Hz or 200 - 240 V / 50 - 60 Hz (automatic switching) , Switching power supply
Operating Temperature 0 - 40 °C
Relative Humidity < 80% (non-condensing)
Cabinet material 15 mm Plywood
Cabinet surface Polyurea
Cabinet construction vented
Monitor angle 54 °
Width 480 mm
Height 737 mm
Depth 455 mm
Weight 26,8 kg

LD Systems STINGER 15A G3 (LD Systems LDS-EB152AG3)
