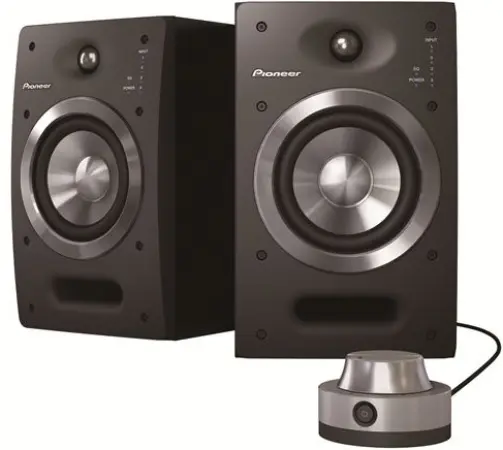

Pioneer SDJ05 (pair)

Pioneer SDJ05 (Pioneer S-DJ05)

Product Highlights
5" Woofer
1" Soft Dome Tweeter
Bass-Reflex Cabinet
Curved Waveguide Enclosure
Wired Control Knob
XLR, TRS, and RCA Inputs
Built-in Linear EQ

Excellent sound quality, audio parameter control, built-in linear equalization, and four switchable inputs.
The Pioneer S-DJ05 Active Reference Monitoring Speakers are designed for DJing and music production. These speakers feature excellent sound quality, audio parameter control, built-in linear equalization and four switchable inputs, useful for DJs and producers who need to achieve the highest accuracy in musical reproduction. In addition, the S-DJ05 speakers offer users the ability to change settings such as sound characteristics and audio inputs via a unique manual controller.

Audio Quality
The compact Pioneer speakers achieve a larger than normal listening area due to the use of a curved waveguide enclosure that directs the soft-dome tweeter's sound in a wider pattern for better imaging and staging. This means more listeners across a larger area of a room can hear the higher frequencies than with traditional designs. Additionally, the Bass Reflex enclosure extends the lower frequency range to provide more mid-bass and bass output. In order to reproduce the highest quality audio possible, the speakers are also equipped with strong high-force magnets for better control of the subwoofers, a low resonance chimney-style heat sink and a bi-amp circuit that drives the tweeter and woofer separately.

Whether the speakers are utilized for DJing or producing music, the built-in linear equalizer provides further fine-tuning of sound for all listeners' tastes. The linear equalizer allows users to adjust the low and high bands from -6 dB to +6dB helping to enhance the tonal quality of instruments while producing music or recreate the low frequency sound of a club while DJing for a more realistic experience, important for critical listeners.

Control
Unique to Pioneer's DJ speakers, the included control accessory allows users to simultaneously operate the volume, power and four switchable input channels of both speakers. The dial style control knob also engages the equalizer and muting of both speakers.

Inputs and Extras
The SDJ05 speakers feature four types of inputs (XLR, TRS and two sets of RCA) that let users connect various devices simultaneously, such as a computer, DJ equipment, portable device, etc. The various inputs eliminate the need to change cable connections so the speakers can be utilized with a broad variety of sources.

The speakers also feature an environmentally-friendly Auto Standby feature that automatically detects input signals and switches the standby mode when input is not detected within 60 minutes. For additional functionality, bottom screw holes were implemented for use with commercially available stands.

Pioneer S-DJ05 Active Reference Speakers (Pair) Features:
5" 2-Way Active Reference Speakers (pair)
Curved waveguide enclosure provides a wider pattern for better imaging and staging
Bass Reflex enclosure provides more mid-bass and bass output
Volume, power, and switchable input control with included control knob accessory

Pioneer S-DJ05 Active Reference Speakers (Pair) Specifications:
Type: Bi-amp 2-way powered speakers
Tweeter: 2.5 cm soft dome tweeter
Woofer: 5 inches
Frequency characteristics: 50 Hz to 25 kHz (-10dB)
Input terminals
Balanced input: XLR x 1, TRS (1/4 inch PHONE) x 1
Unbalanced input: RCA x 2
Maximum external dimensions: (W x H x D)7.28" x 11.85" x 10.16" (including heat sink)
Weight (for pair): 29.54 lbs.
Accessories: controller x 1, link cable x 1, power cables x 2, rubber feet x 8
