Compact and Powerful 8" Two-Way Powered Loudspeaker
The

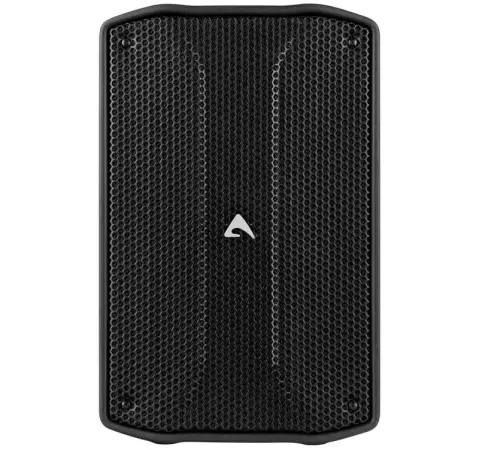

Proel Axiom FL80A is a high-performance two-way powered loudspeaker designed for professional sound reinforcement. Featuring an 8” neodymium woofer and a 1” high-frequency compression driver, this compact yet powerful system delivers excellent sound quality, controlled dispersion, and high efficiency. Whether for live performances, installations, or stage monitoring, the FL80A ensures pristine audio in a lightweight and portable design.
Proel Axiom FL80A Competitive Differences
- Compact and lightweight two-way powered loudspeaker with an 8” neodymium woofer
- 1” HF compression driver with a 1” aluminum voice coil for clear high frequencies
- Advanced DSP with FIR filtering for precise phase alignment and optimal sound quality
- Five selectable EQ presets for various applications
- Class D amplifier with SMPS delivering 250W LF and 50W HF power
- Symmetrical 42° wedge angle for stage monitoring versatility
- Durable and lightweight polypropylene enclosure with M8 rigging points
- PowerCon® input and output connectors for secure power linking
- Balanced XLR input and link output for seamless integration
Proel Axiom FL80A Description
The
Proel Axiom FL80A is a highly versatile and efficient loudspeaker system built for professional sound reinforcement in corporate events, live performances, bars, restaurants, and houses of worship. It features a bi-amplified design powered by a Class D amplifier module, ensuring exceptional sound definition, low distortion, and high efficiency.
The FL80A is equipped with an 8” low-frequency neodymium woofer and a 1” exit high-frequency compression driver with a 1” aluminum voice coil, ensuring excellent transient response and a wide frequency range. Its custom-designed HF horn provides a controlled dispersion pattern of 90° x 60°, delivering even sound coverage across the listening area.

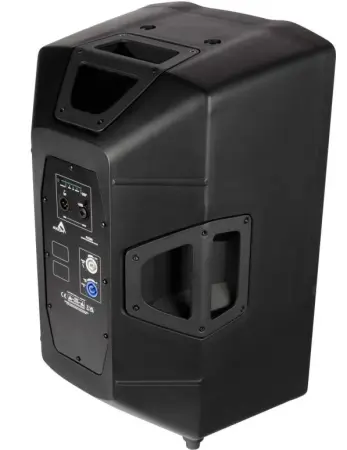

The built-in DSP platform includes 56-bit precision processing with FIR filters for optimized phase alignment and crossover response. Users can choose from five different EQ presets, allowing the speaker to be tailored to different acoustic environments. Its robust yet lightweight polypropylene enclosure features a 35mm pole mount, three recessed handles for easy transport, and M8 rigging points for fixed installations.
The FL80A is a flexible and reliable solution for both portable and installed sound applications. It can also be paired with Axiom SW series subwoofers, such as the SW18A, for extended low-frequency response.
FL80A Features
- Powered two-way loudspeaker with 8” neodymium woofer
- 1” HF compression driver with 1” aluminum voice coil
- Custom HF horn with 90° x 60° dispersion
- Advanced DSP with FIR filtering for superior sound quality
- Class D amplifier with SMPS (250W LF + 50W HF)
- Five selectable EQ presets for different applications
- Symmetrical 42° wedge angle for stage monitoring
- 35mm pole mount and M8 rigging points
- Balanced XLR input and link output
- Neutrik PowerCon® power input and link output
FL80A Specifications
- System: 2-way vented enclosure
- Frequency Response (-6dB): 65 Hz - 20 kHz
- Coverage Angle: 90° H x 60° V
- Max SPL (Peak): 125 dB SPL @ 1m
- LF Driver: 8” neodymium woofer, 2” voice coil
- HF Driver: 1” compression driver, 1” aluminum voice coil
- Amplifier Type: Class D with SMPS
- Output Power: 250W LF + 50W HF
- Input Impedance: 30 kΩ balanced, 15 kΩ unbalanced
- Input Sensitivity: +4dBu / 1.25V
- DSP Processing: 56-bit with FIR filters
- Controls: Preset selection (STANDARD/LIVE/MUSIC/MONITOR/STANDARD LOW CUT)
- Input/Output: XLR-M / XLR-F
- Power Input: Neutrik PowerCon® (NAC3MPA)
- Power Link Output: Neutrik PowerCon® (NAC3MPB)
- Cooling: Passive
- Enclosure Material: High-density polypropylene with metal grille
- Flying System: 3 x M8 flying points
- Dimensions (W x H x D): 10.6” x 16.6” x 9.8” (270mm x 422mm x 250mm)
- Monitor Taper: 42°
- Net Weight: 17.6 lb (8 kg)
Proel Axiom FL80A
(Proel Axiom FL-80A)
