ProX X PWEX4BOX

4-Outlet Power Distribution Box

The ProX X PWEX4BOX is a compact 20A power distribution box designed to deliver organized power across stage, truss, DJ, lighting, and professional AV systems. Four numbered NEMA 5-20R Edison outlets, locking PowerCON input and output connections, pass-through capability, and an M10 threaded mounting point make it practical for distributed power setups where a compact, mountable solution is needed.

ProX X PWEX4BOX Competitive Differences

• Four numbered NEMA 5-20R Edison outlets provide organized power distribution for multiple devices
• 20A rated current capacity supports professional stage and production applications
• Blue PowerCON input and grey PowerCON output provide secure locking power connections
• Pass-through design allows available power to continue downstream to additional compatible equipment
• M10 threaded mounting hole supports attachment to compatible clamps, brackets, and rigging hardware
• Slim 10.75-inch-long enclosure fits easily into truss systems and compact production setups
• Rugged housing is designed to withstand regular stage and event-production use

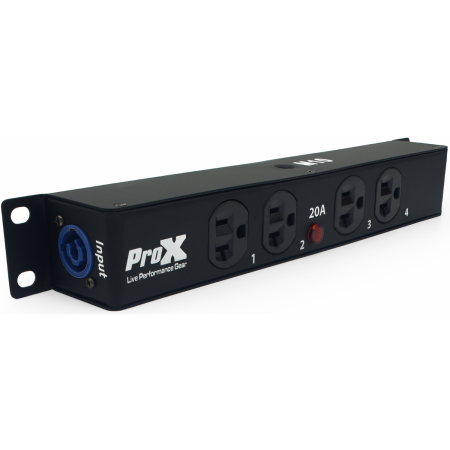

• Clearly numbered outlets simplify cable identification during setup and troubleshooting

ProX X PWEX4BOX Description

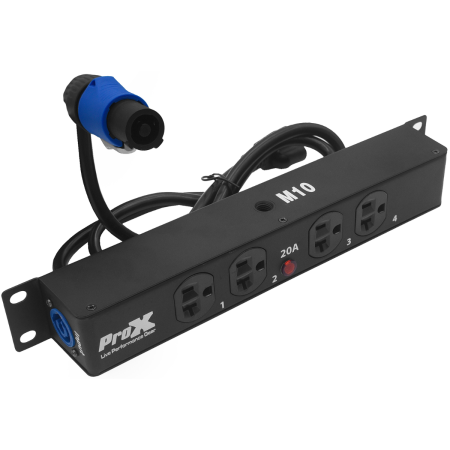

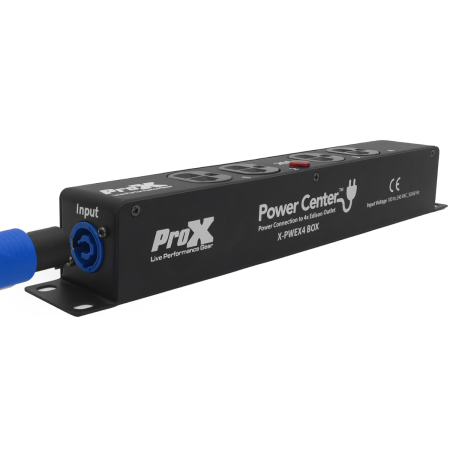

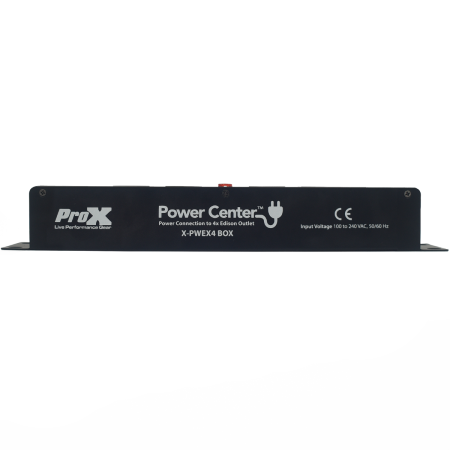

The ProX X PWEX4BOX Power Center provides four Edison NEMA 5-20R outlets in a slim power-drop enclosure designed for professional indoor production environments. Clearly numbered outlets make it easier to organize connected lighting, audio, video, DJ, and other production equipment.

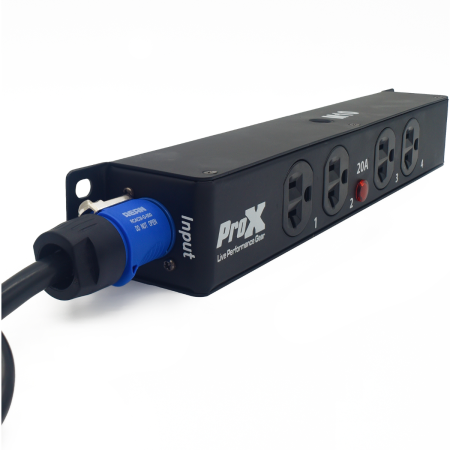

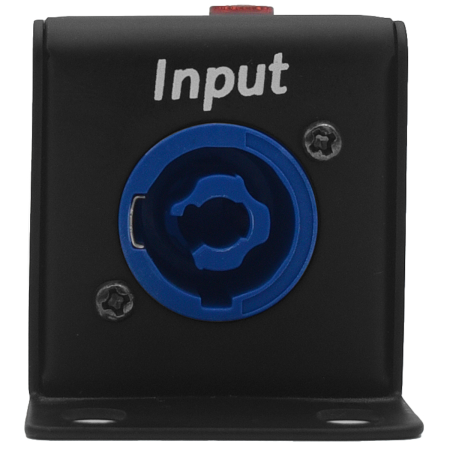

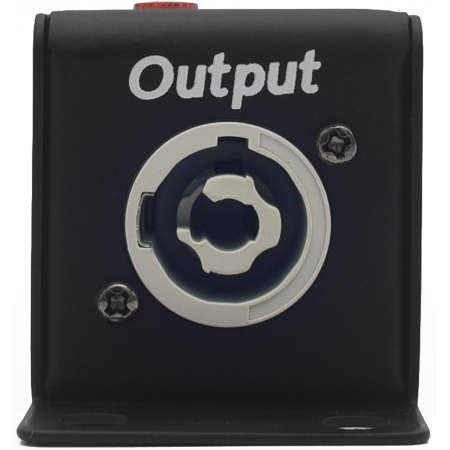

Locking PowerCON connections are provided for power input and output. The blue input and grey output connectors support pass-through operation, allowing power to continue downstream to additional compatible equipment or distribution boxes while keeping connections secure in stage and truss installations.

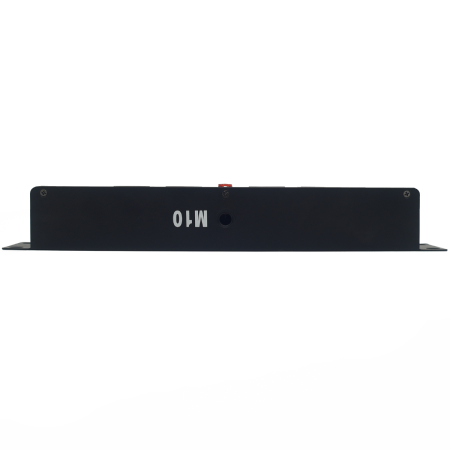

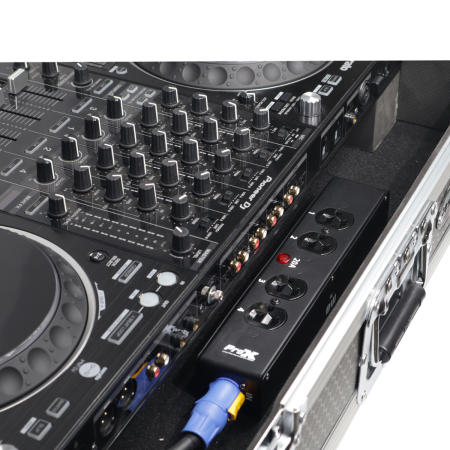

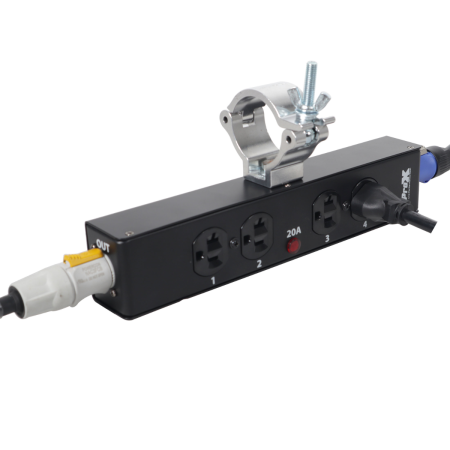

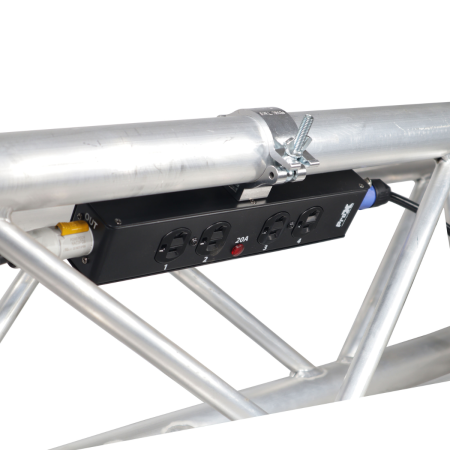

An integrated M10 threaded mounting point provides a convenient way to attach the unit to compatible clamps, brackets, or other mounting hardware. Its compact dimensions make it particularly useful for truss-mounted lighting systems, mobile DJ setups, stage installations, and other applications where space and cable organization are important.

The X PWEX4BOX is rated for a maximum combined load of 20A and carries an IP20 rating for indoor use only. It should be kept dry and must not be exposed to rain or moisture. This model has been discontinued and replaced by the ProX X PWEDX4MAYA.

X PWEX4BOX Features

• Four numbered Edison NEMA 5-20R outlets
• 20A rated power distribution
• Blue locking PowerCON power input
• Grey locking PowerCON power output
• Pass-through power design
• Linkable configuration for compatible downstream equipment
• M10 threaded mounting hole
• Slim, compact enclosure
• Clearly numbered outlets for quick identification
• Designed for stage, truss, DJ, lighting, audio, and AV applications
• IP20 rated for indoor use only
• Maximum combined load of 20A
• Discontinued model replaced by X PWEDX4MAYA

X PWEX4BOX Specifications

• Outlets: 4 x NEMA 5-20R Edison
• Rated Current: 20A maximum combined load
• Power Input: Blue PowerCON connector
• Power Output: Grey PowerCON connector
• Power Configuration: Pass-through
• Mounting: M10 threaded mounting hole
• IP Rating: IP20
• Use: Indoor use only
• Dimensions: 10.75 x 2.25 x 2.00 in (273 x 57 x 51 mm)
• Weight: 2.00 lb (0.91 kg)
• Shipping Dimensions: 12.00 x 4.50 x 2.00 in
• Shipping Weight: 2.00 lb
• UPC: 019372410713

What's In The Box

• ProX X PWEX4BOX power distribution box

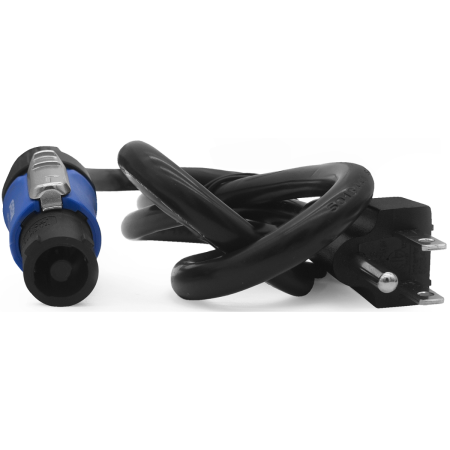

• Power cord
