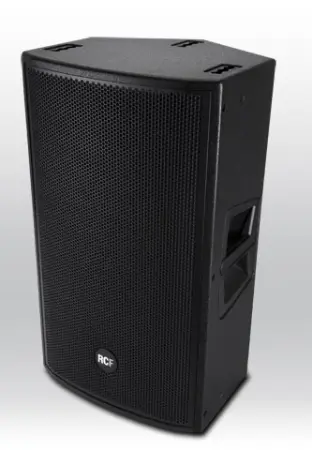

RCF NX-M25a

RCF NX M25-A MK II (RCF NXM-25A MK2)

ACTIVE TWO-WAY MONITOR

The NX M25-A is a high-power, high output, two-way, wide dispersion active sound reinforcement system. The large format compression driver deliver a superior output and offer unique vocal clarity and extremely low distortion.
It benefits from the integration of 750 Watt digital amplifier power, control electronics and premium transducers components. It is specially equipped with a 2.0” compression driver featuring a 3.0” size aluminum voice coil. The 15” woofer is powered by a 3.5” high power voice coil. The NX M25-A is the perfect tool for heavy duty professional applications.

750 Watt digital amplifier
132 dB max spl
90 x 40, Wide dispersion constant directivity angle, rotatable horn
15" woofer, high power 3.0" voice coil
2" HF neodymium driver, titanium dome, 3.0" voice coil
PFC power factor correction

ACOUSTICAL SPECIFICATIONS
Frequency Response -3 dB:50 Hz ÷ 20 kHz
Max SPL:132 dB
Horizontal coverage angle:90°
Vertical coverage angle:40°
Compression Driver:2", 3.0" v.c.
Woofer:15", 3.0" v.c.
INPUT/OUTPUT SECTION
Input signal:bal / unbal
Input connectors:Combo xlr-jack
Output connectors:xlr
Input sensitivity:-2 dBu / +4 dBu
PROCESSOR SECTION
Crossover frequencies:1100 Hz
Protections:Thermal, rms
Limiter:Soft peak limiter
Controls:Volume, side / floor, contour
AMPLIFIER SPECIFICATIONS
Total power:750 W
High frequencies:250 W
Low frequencies:500 W
Cooling:Convection / forced
Connections:Powercon in / out
CABINET
Cabinet Material:Balitc birch
Hardware:6 x fly tracks
Handles:2 side
Pole Mount/Cap:Yes
Colour:Black
PHYSICAL SPECIFICATIONS
Height:736 / 28.97 mm/inch
Width:430 / 16.92 mm/inch
Depth:395 / 15.55 mm/inch
Net Weight:30.5 / 67.24 kg/lbs

APPLICATIONS
• Compact live sound reinforcement system
• Foreground / background music, infill / delay
• Portable PA, retail, clubs, ballrooms, corporate AV, live theatre, houses of worship, theme parks
• Stage monitoring
PART NUMBER
• 13000353 (230V)
• 13000354 (115V)
