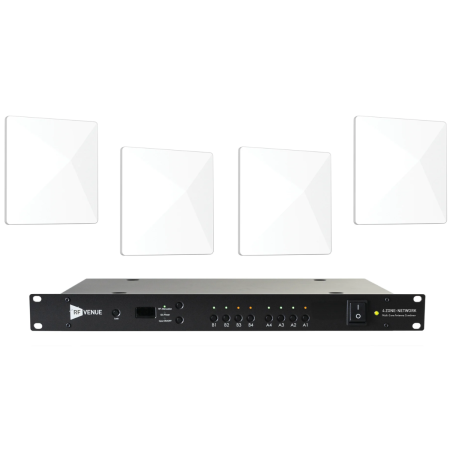

RF Venue 4ZONE-NET-DARC | 4-Zone Network Antenna C...
$3,199.00
The RF Venue 4ZONE-NET-DARC combines a network-enabled four-zone antenna combiner with four white Diversity Architectural Antennas for professional multi-zone wireless microphone installations. Each architectural antenna supplies both A and B diversity connections from one discreet enclosure, while the 4 ZONE-Network combines all four coverage zones into a single diversity output pair for connection to a downstream wireless microphone antenna distribution system.
The RF Venue 4ZONE-NET-DARC is designed for wireless microphone installations where performers, presenters, or staff need reliable coverage across multiple rooms or distinct areas. The 4 ZONE-Network accepts four separate A/B diversity antenna zones and combines them into one A/B output pair, allowing a downstream antenna distributor or compatible wireless system to receive RF coverage from selected areas throughout a facility.
Network connectivity adds centralized control without requiring physical access to the rack. Using the built-in browser interface over LAN, technicians can check zone status, enable or disable individual antenna inputs, switch DC power for compatible external RF devices, and adjust attenuation for each antenna channel. Up to 16 presets can be stored for commonly used configurations, allowing settings for different room arrangements or events to be recalled quickly.
The four included Diversity Architectural Antennas provide a clean installation alternative to conventional paddle antennas. Each antenna uses a dual-feed design with separate A and B diversity connections in one 11-inch-square enclosure. The antennas can be installed on walls or ceilings and can be painted with suitable non-metallic paint to better integrate into conference rooms, houses of worship, schools, auditoriums, hospitality spaces, training facilities, and other architecturally finished environments.
The 4 ZONE-Network operates across 470–960 MHz, while the included Diversity Architectural Antennas operate from 470–698 MHz. The combiner provides adjustable RF attenuation, selectable DC power over coax, front-panel control, and RJ45 network connectivity in a single-rack-space chassis. The result is a flexible multi-zone RF front end for installations that need centralized management without the complexity of a larger enterprise antenna system.
| Brand | RF Venue |
| Name | RF Venue 4ZONE-NET-DARC | 4-Zone Network Antenna Combiner | 4 Architectural Diversity Antennas |
| Primary Category | Networked Multi-Zone Wireless Microphone Antenna System |
| Build Material | White, paintable with suitable non-metallic paint |
| Dimensions | 19 x 2 x 10 in (480 x 45 x 250 mm) for combiner, 11 x 11 x 2 in (280 x 280 x 50 mm) for antennas |
| Included Accessories | 4 ZONE-Network combiner, 4 Diversity Architectural Antennas, 2 BNC jumper cables (6 in), AC power cord, ceiling and wall mounting hardware kits |
| Mounting Options | Wall or ceiling |
| Weight | 5.5 lb (2.5 kg) for combiner, 2 lb (0.9 kg) each for antennas kg |
| Control Interfaces | LAN-based browser control via RJ45 Ethernet |
| Preset Storage | Up to 16 presets |
| Wireless Capabilities | Supports multi-zone wireless microphone antenna combining with diversity A/B feeds |
| Frequency Response | 470–960 MHz (Combiner), 470–698 MHz (Antennas) MHz |
| Impedance | 50 ohms ohms |
| Power Consumption | 100–240 VAC, 50/60 Hz, max 2A watts |
| Power Rating | 12V DC, 200mA per antenna input V DC |
| Voltage Range | 100–240 VAC VAC |
