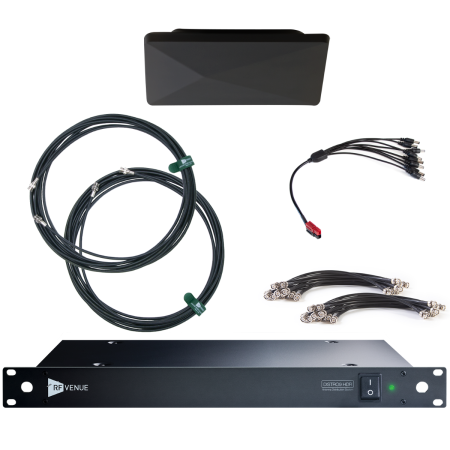

The RF Venue D-ARCBD9 is a complete 9-channel wireless microphone RF distribution bundle combining the DISTRO9 HDR with a black Diversity Architectural Antenna, premium low-loss coaxial cabling, and DC receiver power distribution. It provides a compact 1RU solution for professional installations requiring dependable diversity reception, flexible multi-zone coverage, and discreet wall or ceiling antenna placement.
The RF Venue D-ARCBD9 combines RF Venue's Diversity Architectural Antenna with its DISTRO9 HDR antenna distribution platform for wireless microphone systems with up to nine diversity receivers. The antenna uses a dual-feed design that supplies separate A and B diversity connections from one housing, helping reduce RF dropouts associated with changing transmitter orientation while avoiding the visual clutter of two separately mounted antennas.
The black Diversity Architectural Antenna is designed for permanent indoor AV installations where appearance is as important as RF performance. Its slim enclosure can be installed on a wall or ceiling and operates across 470–698 MHz. The Diversity Flood coverage pattern makes it well suited to conference rooms, multipurpose spaces, training facilities, houses of worship, schools, theaters, auditoriums, and other venues requiring broad wireless microphone coverage.
The DISTRO9 HDR provides nine diversity RF output pairs and two diversity antenna input zones in a single rack-space chassis. Its 50–1000 MHz operating range supports a broad selection of professional wireless microphone systems, while its high-dynamic-range architecture is designed for clean, low-noise RF distribution. The two antenna zones can also simplify systems that need coverage across separate rooms or larger areas.
Power distribution is integrated into the DISTRO9 HDR, with 12V DC available over coax for compatible active antennas or inline RF devices and a dedicated 12V DC, 5A output for compatible wireless microphone receivers. The bundle also supplies two 25-foot RG8X antenna cables, ten 1.5-foot interconnect cables, ten 2-foot interconnect cables, and DC power distribution hardware for a complete and organized multi-channel wireless installation.
| Brand | RF Venue |
| Name | RF Venue D-ARCBD9 | 9-Channel Dual-Zone RF Distribution | Black Architectural Diversity Antenna |
| Primary Category | Wireless Microphone Antenna Distribution Bundle |
| Build Material | Black architectural enclosure |
| Dimensions | 19 x 2 x 10 in (480 x 45 x 250 mm) inches |
| Included Accessories | Black Diversity Architectural Antenna, DISTRO9 HDR 9-Channel Antenna Distribution System, AC Power Cord, 2 RG8X25 25 ft Low-Loss BNC Coaxial Cables, 10-pack 1.5 ft RG8X BNC Interconnect Cables, 10-pack 2 ft RG8X BNC Interconnect Cables, DC-OCTOPUS-CABLE Power Distribution Kit |
| Mounting Options | Wall or ceiling |
| Weight | 6 lb (2.7 kg) lb |
| Channels | 9 |
| Frequency Response | 50–1000 MHz MHz |
| Impedance | 50 ohms ohms |
| Power Consumption | 50/60 Hz, 2A A |
| Voltage Range | 100–240 VAC VAC |
| Warranty Length | Not specified years |
