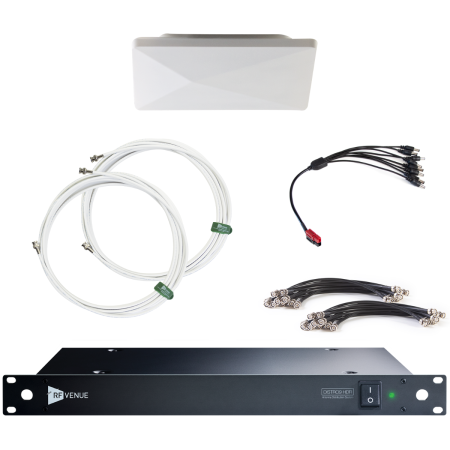

The RF Venue D-ARCD9 is a turnkey 9-channel wireless microphone RF distribution bundle combining the DISTRO9 HDR with a white Diversity Architectural Antenna, premium low-loss coaxial cabling, and DC receiver power distribution. It provides a streamlined solution for professional installations that need reliable diversity reception, flexible multi-zone coverage, and discreet wall or ceiling antenna placement.
The RF Venue D-ARCD9 combines RF Venue's Diversity Architectural Antenna with the DISTRO9 HDR to create a complete antenna distribution solution for systems with up to nine diversity wireless microphone receivers. The architectural antenna uses a dual-feed design that provides separate A and B diversity connections from a single enclosure, helping maintain reliable RF reception while eliminating the visual clutter of two separately mounted antenna housings.
The white Diversity Architectural Antenna is designed specifically for installed AV environments. Its slim 11-inch-square enclosure can be mounted on a wall or ceiling, while the included mounting hardware supports multiple installation methods. The antenna operates from 470–698 MHz, provides a Diversity Flood coverage pattern, and is well suited to conference rooms, training facilities, houses of worship, schools, auditoriums, multipurpose spaces, and other locations where RF performance and appearance are both important.
The DISTRO9 HDR provides nine diversity RF outputs and two diversity antenna input zones in a single rack-space chassis. Its wide 50–1000 MHz operating range accommodates a broad selection of professional wireless microphone systems, while its high-dynamic-range RF architecture provides clean distribution across the supported spectrum. Two antenna zones also make it possible to design coverage for larger areas or multiple rooms from one distribution platform.
The DISTRO9 HDR provides 12V DC power over coax for compatible active antennas or inline amplifiers and a separate 12V DC, 5A output for powering compatible wireless microphone receivers. The bundle also includes two white 25-foot RG8X antenna cables, ten 1.5-foot RG8X interconnects, ten 2-foot RG8X interconnects, and a DC-OCTOPUS-CABLE for a complete and organized multi-channel wireless installation.
| Brand | RF Venue |
| Name | RF Venue D-ARCD9 | 9-Channel Dual-Zone RF Distribution | White Architectural Diversity Antenna |
| Primary Category | Wireless Microphone Antenna Distribution Bundle |
| Channels | Up to 9 diversity receiver channels channels |
| Color Mixing | Diversity Flood |
| Dimensions | 19 x 2 x 10 in (480 x 45 x 250 mm) inches |
| Included Accessories | White Diversity Architectural Antenna, Ceiling Hardware Mounting Kit, Wall Hardware Mounting Kit, DISTRO9 HDR 9-Channel Antenna Distribution System, AC Power Cord, Two 25 ft RG8X Low-Loss BNC Coaxial Cables, Ten 1.5 ft RG8X BNC Interconnect Cables, Ten 2 ft RG8X BNC Interconnect Cables, DC-OCTOPUS-CABLE |
| Mounting Options | Wall or ceiling |
| Weight | 6 lb (2.7 kg) lb |
| Frequency Response | 50–1000 MHz MHz |
| Impedance | 50 ohms ohms |
| Power Consumption | 50/60 Hz, 2A watts |
| Voltage Range | 100–240 VAC VAC |
| Warranty Length | 14 to 104°F (-10 to 40°C) °F/°C |
