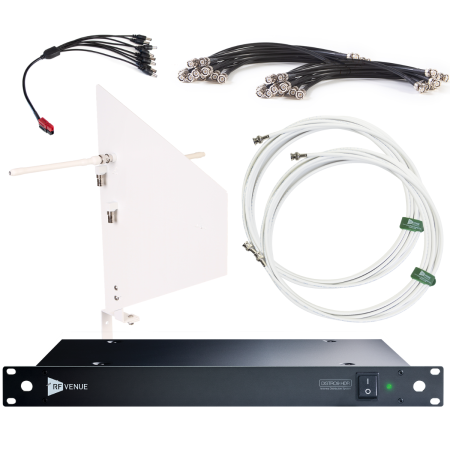

The RF Venue DFINWD9 is a turnkey 9-channel wireless microphone RF distribution system built around the white wallmount Diversity Fin antenna and DISTRO9 HDR. It combines polarization-diversity reception, dual-zone antenna distribution, low-loss coaxial cabling, and receiver power distribution in a single-rack-space system designed for professional installed wireless microphone applications.
The RF Venue DFINWD9 combines RF Venue's patented Diversity Fin antenna technology with the DISTRO9 HDR to provide antenna distribution for systems with up to nine diversity wireless microphone receivers. The Diversity Fin uses a directional LPDA element and a bidirectional dipole positioned at right angles, allowing the antenna to receive both vertically and horizontally polarized RF signals. This polarization-diversity design helps reduce multipath-related signal fades caused by changing microphone and bodypack orientation.
The included DFINW Diversity Fin features a white enclosure and white wall-mount bracket for permanent installation in spaces where a lower-visibility antenna system is preferred. Its passive 470–698 MHz design provides separate A and B BNC outputs and is well suited to houses of worship, schools, theaters, conference facilities, broadcast environments, and other professional wireless microphone installations.
The DISTRO9 HDR provides nine diversity receiver outputs and two diversity antenna input zones in a single 1RU chassis. Its 50–1000 MHz operating range and high-dynamic-range RF architecture are designed for clean distribution across a broad wireless spectrum. The second antenna zone adds flexibility for covering multiple rooms or larger areas, while DC power over coax can support compatible active antennas or inline amplifiers.
The DISTRO9 HDR also provides a 12V DC, 5A power output for compatible receiver power distribution. Low-loss 25-foot antenna cables plus 1.5-foot and 2-foot BNC interconnect cable packs are included to complete the RF connections between the antenna, distributor, and wireless receivers, creating an organized system with fewer separately sourced components.
| Beam Angle | 140° azimuth (LPDA), 100° azimuth (Dipole) degrees |
| Connectivity Protocols | BNC connectors, DC power over coax |
| Frequency Response | 50–1000 MHz MHz |
| Impedance | 50 ohms ohms |
| Power Consumption | 50/60 Hz, 2A A |
| Voltage Range | 100–240 VAC VAC |
| Brand | RF Venue |
| Name | RF Venue DFINWD9 | 9-Channel Dual-Zone RF Distribution | White Wallmount Diversity Fin Antenna |
| Primary Category | Wireless Microphone Antenna Distribution System |
| Dimensions | 19 x 2 x 10 in (480 x 45 x 250 mm) inches |
| Included Accessories | White wall-mount bracket, AC power cord, 25 ft low-loss RG8X coaxial cables, 1.5 ft and 2 ft BNC interconnect cable packs, DC power distribution kit |
| Mounting Options | White wall-mount bracket for permanent installation |
| Weight | 6 lb (2.7 kg) kg |
