Yorkville EF15P | 15in - 133dB
$1,719.00

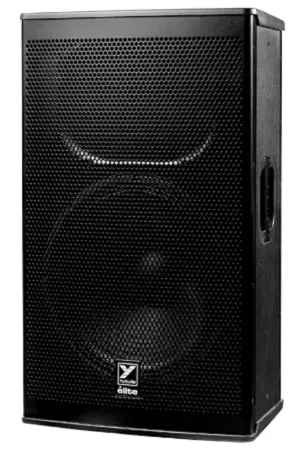

Yorkville EF15P ( Yorkville 15 Inch Powered Speaker )
Perfect for a wide range of applications, the EF15P is a 15 inch 2-way speaker with high output, an extremely durable front of house box and more.
Yorkville EF15P Features:
High Output, High Quality and extremely durable Dedicated Front of House box
Completely Redesigned Next Generation Elite Cabinet
ABS Coated Birch Plywood Cabinet Construction
Multiband DSP Limiting with 4 Preset Performance Modes
3-inch Titanium Diaphragm Compression Drivers for Reduced Distortion at High SPL
15-inch Long Excursion Cast Frame Neodymium Woofer with 3-inch Voicecoil
iOS and Android App for Added Cabinet Control (Coming Soon)
Made in Canada
Yorkville EF15P Specifications:
System Type 2-Way
Active or Passive Active
Program Power (Watts) 1200 Watts (2400 Watts Peak)
Max SPL (dB) 133dB Peak (127dB Continuous)
Frequency Response (Hz +/- 3dB) 43 - 16k (Hz +/- 3dB)
Crossover Frequency (Hz) 1100
Driver Configuration 15-inch, 3-inch Diaphragm
HF Driver(s) 3-inch Voicecoil (Titanium Diaphragm)
HF Dispersion (°H x °V) 60x40
LF Driver(s) 15-inch neo magnet w/3-inch Voice coil
HF Power Amplifier (Watts) 300
HF Amplifier Type 3-Tier High Headroom
LF Power Amplifier (Watts) 900
LF Amplifier Type Class-D
Power Cable 25 ft (7.6m) Heavy Gauge Detachable IEC
In / Out Connections 1 x XLR & 1/4-inch Combi-jack, RCA Line Inputs
1 x XLR microphone Input
1 x XLR & 1/4-inch Combi-jack Main Input
1 x XLR-M Thruput
Input Impedance (Bal/UnBal) 95KOhms / 90kOhms
Input Sensitivity (Vrms Sine) +4dBv / 1.23V
Controls Mixer Enable
Mic Input w/level
Line Input w/level
DSP Mode (Club, Concert, Vocal, Custom)
Sub (100Hz HP Filter)
Bluetooth Control Enable
Master Level
Bar Handles 2 x Side / 1 x Top
Flypoints 8 x ¼-20 (2 Top, 2 Bottom, 2 Each Side, 2 Pullback)
Pole Mount Adapter (1 3/8"-3.5cm) 1 Bottom (1 3/8-inch / 3.5cm)
Enclosure Materials ABS Coated Baltic Birch Plywood
Dimensions (DWH xbackW, inches) 14 x 18.5 x 30 x 12
Dimensions (DWH xbackW, cm) 35.5 x 47 x 76 x 30.5
Weight (lbs/kg) 64 / 29
| App Control | iOS and Android App for Added Cabinet Control (Coming Soon) |
| Control Interfaces | Mixer Enable, Mic Input w/level, Line Input w/level, DSP Mode, Sub HP Filter, Bluetooth Control Enable, Master Level |
| Brand | Yorkville |
| Name | Yorkville EF15P |
| Primary Category | Powered Speaker |
| Build Material | ABS Coated Baltic Birch Plywood |
| Dimensions | 14 x 18.5 x 30 x 12 inches inches |
| Included Accessories | 25 ft (7.6m) Heavy Gauge Detachable IEC Power Cable |
| Mounting Options | 8 x ¼-20 Flypoints, 1 Bottom Pole Mount Adapter (1 3/8-inch / 3.5cm) |
| Weight | 64 lbs / 29 kg kg |
| Driver Configuration | 15-inch, 3-inch Diaphragm |
| Frequency Response | 43 - 16k Hz Hz |
| Impedance | 95KOhms / 90kOhms Ohms |
| LED Type | 3-inch Voicecoil (Titanium Diaphragm) |
| Max SPL | 133dB Peak (127dB Continuous) dB |
| Power Rating | 1200 Watts (2400 Watts Peak) Watts |
