Yorkville YXL10P | 10in - 126dB
$479.00

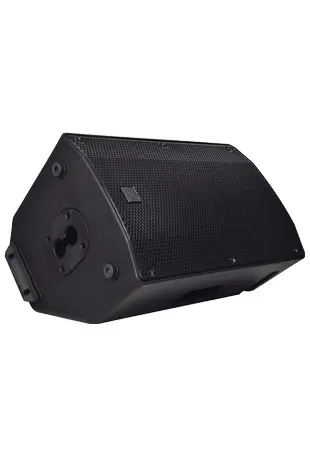

The YXL cabinets use a single driver and 90 x 60 degree horn with 1-inch throat and 1-inch compression driver. Constructed from strong Polypropylene, YXL is poised to uphold Yorkville's reputation for reliability and durability. The cabinets can be positioned upright or used as a monitor wedge.
Designed as an all-purpose speaker with the Musician & DJ in mind, each YXL cabinet features 3 channels. The cabinet supports Bluetooth streaming and EQ pushbutton controls for Concert, Club & Monitor modes.
Features:
1000 Watts (Peak) 500 Watts (Program)
10-inch woofer with 2-inch voice coil
3 Channels plus Master level
1-inch compression driver
90° x 60° HF dispersion
Polypropelene cabinet construction
Integrated 3 channel mixer with 2X 1/4", 2X XLR and 1/8" inputs
Bluetooth streaming
3 performance modes (Concert, Club, Monitor)
Specifications:
System Type Active Loudspeaker
Active or Passive Active
Program Power (Watts) 500 Watts Program (1000 Watts Peak)
Max SPL (dB) 126dB Peak
Frequency Response (Hz +/- 3dB) 55 - 16k (Hz +/-3dB)
90 x 40
Crossover Frequency (Hz) 1.6kHz
HF Horn Integrated into Baffle
LF Driver(s) 10-inch (2-inch voice coil)
LF Program Power(Watts) 450 Watts Program (900 Watts Peak)
HF Power Amplifier (Watts) 50
HF Amplifier Type Class A/B
LF Amplifier Type Class D
Cooling Scheme Speed controlled fan
Power Cable Yes
Power Switch Yes
Inputs 2 x XLR, 2 x 1/4", 1/8", Bluetooth and Main in (XLR)
Level Controls x3 Chanels + Master
EQ Controls Push button select, Concert, Club, Monitor
Limiter Multiband excursion, RMS, rail
Other Controls / Features Sub mode HP filter, Mixer IN/OUT, Stereo/Mono out, 3.5mm Aux in, BT streaming
Feet Rubber
Bar Handles 1 x Side / 1 x Back
Flying Hardware 2 (Top), 1 (Pullback)
Optional Flying Hardware Yes
Enclosure Materials Polypropelene, Metal grille
Baffle Material Polypropylene
Grille Powder Coated Steel with Grille Cloth
Other Details Rubber feet on bottom and side with the monitor Wedge
Dimensions (DWH xbackW, inches) 11 x 13.25 x 20.5
Dimensions (DWH xbackW, cm) 28 x 33.5 x 52
Weight (lbs/kg) 28 / 14
| Brand | Yorkville |
| Name | Yorkville YXL10P | 10in - 126dB |
| Primary Category | Active Loudspeaker |
| Build Material | Polypropylene cabinet, Powder Coated Steel grille with Grille Cloth |
| Dimensions | 11 x 13.25 x 20.5 inches inches |
| Included Accessories | Rubber feet, Bar handles, Flying hardware (2 top, 1 pullback) |
| Mounting Options | Flying hardware included, Optional flying hardware available |
| Weight | 28 lbs / 14 kg lbs |
| Connectivity Protocols | Bluetooth streaming, 2 x XLR, 2 x 1/4", 1/8" inputs |
| Frequency Response | 55 - 16kHz Hz |
| Max SPL | 126dB Peak dB |
| Power Rating | 1000 Watts Peak, 500 Watts Program Watts |
| Wattage | 500 Watts Program Watts |
| Driver Configuration | 1-inch compression driver, 10-inch woofer with 2-inch voice coil |
| Woofer Size | 10-inch woofer inch |
| Physical Controls | 3 channel mixer with master level, EQ pushbutton controls for Concert, Club & Monitor modes |
