Speaker Type 2-Way Active Speaker
The active two-way speaker series providing a professional sonic performance to all kind of users. The most accurate sound reproduction combined with aggressive sound pressure levels and enhanced portability.
B·H series aims to provide a professional yet efficient sonic performance to all kind of users, combining an extremely efficient CLASS D amplifier with aggressive sound pressure levels (up to 126,5 dB for the 15” cabinet), while delivering the most accurate sound reproduction.

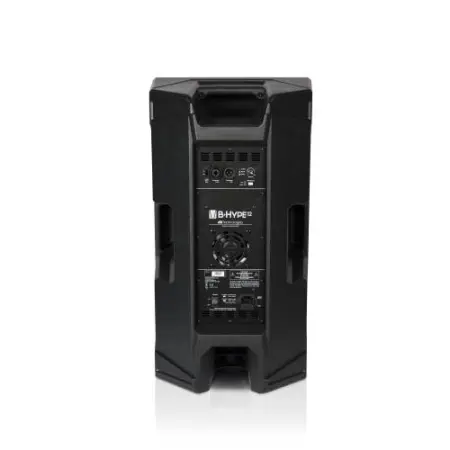

The new B-HYPE 12 is a versatile active speaker. It is equipped with one 1” neodymium compression driver (1” voice coil), and one 12” woofer (2” voice coil). The dispersion pattern is asymmetrical on vertical axis, and it is diversified (top and bottom) on the horizontal one. This allows a narrower and more efficient sound coverage, and a better performance in case of reverberant environments. The combo input (with source type selection) allows an easy and versatile use, suitable for a dynamic microphone and standard line input. The user can enhance lower and upper frequencies with the convenient DSP preset function. A balanced link output allows the audio connection to a second loudspeaker.
The featherweight cabinets (from 14 to 38 lbs) come with a clean and contemporary full grille design, enhancing both portability (3 handles -1x side and 1 on top-) and multifunctiontality: each cabinet can be used horizontally as a stage monitor (on both sides) and features a pole mount cup in order to be used on tripods or stacked on dB Technologies Subs.
Features:
Maximum efficiency up to 126 dB SPL
Professional acoustic performance
Innovative horn design for uniform and extended coverage
Compact featherweight
Clean and contemporary design enhancing portability
3 handles
Double stage monitor angle
Preset EQ Flat /Boost
Specifications:
Acoustical data
Usable Bandwidth [-10dB] 55 - 20.000 Hz
Frequency Response [-6 dB] 61 - 19.500 Hz
Max SPL 126 dB
Type HF Compression Driver
HF voice coil 1 "
LF12 "
LF voice coil 2 "
Crossover Frequency 2100 Hz (24 dB/oct.)
Horizontal Dispersion asymmetrical 85° up / 120°down
Vertical Dispersion 85° (+25/ -60°)
Amplifier
Amp Technology Custom Made
Amp Class Class D - Passice cooling (convection)
Power Peak 400 W
Processor
Controller DSP 28/56 bit- 48 kHz
Limiter Peak, RMS, Thermal
Controls Volume, Audio Input Sensitivity, DSP Preset
Input
Main Connection VDE
Signal Input Balanced 1 x Combo IN (MIC/LINE)
SIGNAL Out (Balanced) 1 x XLR OUT (LINK)
Mechanics
Housing Polypropylene
Grille Full Metal Grille
Handles 3 (2 on side 1 on top)
Pole Mount 36 mm
Width 350 mm (13.77 in)
Height 645 mm (25.40 in)
Depth 330 mm (12.99 in)
Weight 13.9 kg (30.46 lbs)
Angles Up Double wedge angle 45°

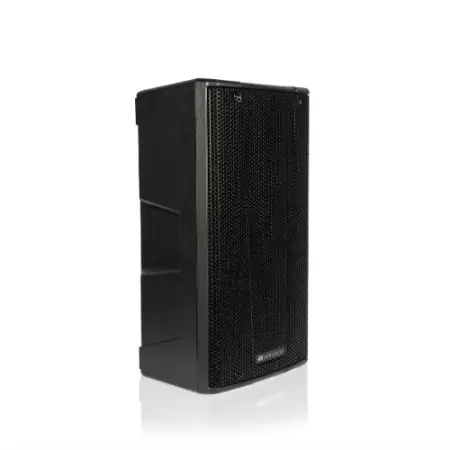

dB technologies B-H12
(dB Tech B Hype 12)
