dB Tech L160D

Compact Powered Loudspeaker for Multimedia and Installation Use

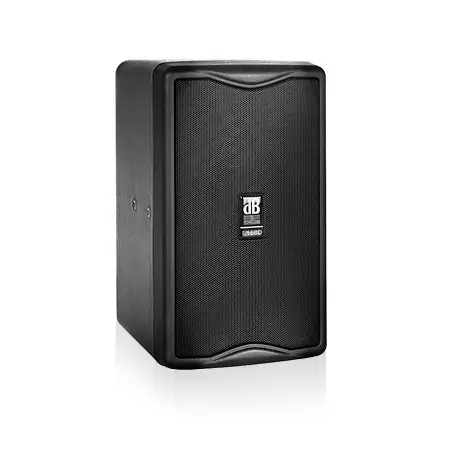

The dB Technologies L160D is a lightweight, high-output active loudspeaker designed for flexible use in multimedia, commercial, or portable sound reinforcement. Its dual 5" drivers, driven by an integrated DSP and 160W of Class D amplification, deliver impressive sound pressure and clarity in an ultra-compact format.

dB Technologies L160D Competitive Differences

• Dual 5" phase-corrected drivers with coaxial woofer and dome tweeter for articulate sound
• Integrated DSP with 8 EQ presets and 24-bit/48kHz audio conversion
• 160W Class D bi-amped power with 320W musical peak power
• Multiple mounting options: pole mount and wall-mount fixing points

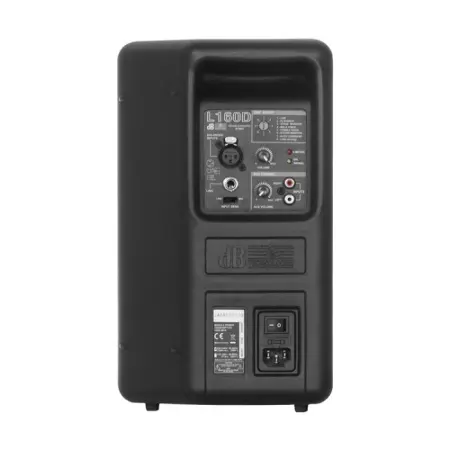

• Multiple input types including RCA and balanced mic/line with switchable sensitivity
• Lightweight and compact at just 11.46 lbs

dB Technologies L160D Description

The dB Technologies L160D is a powerful, compact active speaker ideal for professional AV installs and portable multimedia sound applications. Equipped with two 5" speakers, including one coaxial configuration with a dome tweeter, this cabinet delivers detailed high-frequency performance and tight low-end response despite its small footprint. Its digital Class D bi-amp module powers the system with 160W RMS (320W peak), managed by a high-performance 56-bit DSP. The speaker supports precise audio tailoring with 8 selectable EQ presets, while AD/DA conversion ensures clarity at 24-bit/48kHz resolution. Engineered for versatility, the L160D features a wide range of I/O options including RCA, balanced XLR/TRS inputs, and switchable line/mic sensitivity. Whether used in fixed installations with wall mounts or on a speaker pole for mobile setups, this model delivers premium dB Technologies sound in a compact, user-friendly format.

L160D Features

• Active speaker with dual 5" drivers (coaxial woofer + dome tweeter)
• 160W RMS Class D amplifier (320W peak)
• Bi-amped design with DSP processing
• 8 selectable EQ presets
• 24-bit/48kHz AD/DA conversion
• Switchable line/mic input sensitivity
• RCA input with -12dBu sensitivity and 4.7Kohm impedance
• Multiple mounting options: wall mount and pole mount
• Digital volume control

L160D Specifications

• System type: Active bi-amped
• Amplifier type: Class D
• Power rating (RMS): 160W
• Musical peak power: 320W
• Frequency response (-6dB): 88Hz – 20kHz
• Frequency response (-10dB): 70Hz – 20kHz
• Max SPL: 116dB
• Drivers: 1 x 5" woofer, 1 x 5" coaxial woofer with dome tweeter
• Input sensitivity: -32dBu / 0dBu (switchable)
• Input impedance: Balanced: 30KΩ / 600Ω, Unbalanced: 15KΩ / 300Ω
• DSP resolution: 56-bit
• Power supply: 110-120Vac / 220-240Vac, 50-60Hz
• Inrush current: 900mA
• Current consumption: 800mA (110-120V), 400mA (220-240V)
• Dimensions (W x H x D): 7.9" x 13.2" x 8.7"
• Weight: 11.46 lbs (5.2 kg)

dB Technologies 103020070A
