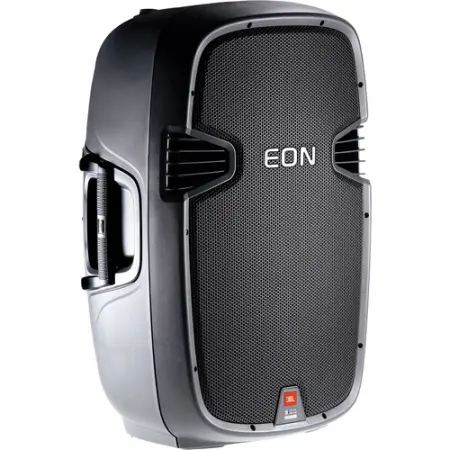

JBL EON515-XT

JBL EON515 XT

The EON 515XT was engineered for durability, high performance and ease of use. JBL extended the reach of the current EON technology by improving input sensitivity, lowering the noise floor, adding user selectable EQ control and re-voicing the system for peak performance and enhanced audio precision. The intuitive onboard 3-channel mixer with adjustable EQ assures that you’re in control of the sound and the sturdy construction and superior ergonomic design will guarantee a lifetime of reliability and simplicity.

Features:

Highly designed composite enclosures for durability, lightweight, and precise acoustic performance
True portability weighing only 14.8 kg (32.5 lb)
Multiple handles with comfort rubber grips for easy transport
Multi angle enclosure for main PA or floor monitor applications
Integrated 36 mm pole mount socket with stabilizing securing screw
Integrated M10 suspension points for easy fixed installation
100º H x 60º V asymmetrical wave guide for uniform audience coverage
1 5” Differential Drive® low-frequency driver with neodymium magnet for low-distortion and light weight
1” throat diameter next generation JBL neodymium compression driver
Efficient Crown® Hybrid Class-D amplifier technology
625 watt high-performance powered speaker system
Intuitive onboard 3-Channel Mixer
Line level and direct microphone input capability
User adjustable Bass and Treble controls
Unique Mix/Loop signal flow function for extended system application
Easy “Daisy-Chain” connections for extending the system

System Power Rating : 625 Watts (525 + 100)
Frequency Range (-10 dB) : 39 Hz -20 kHz
Dimensions (H x W x D) : 673 mm x 406 mm x 368 mm (26.5” x 16” x 14.5”)
System Type : Self powered 15”, two-way, bass-reflex
Maximum SPL Output : 132 dB
Frequency Response (±3 dB) : 42 Hz - 18 kHz
Input Connectors : 2 x 1/4” TRS phone jacks balanced/unbalanced 1 x XLR / 1/4” TRS combo jack with XLR loop through
Input Impedance : 14k ohms
Signal Indicators : Limit: Red LED indicates limiter active condition
Signal: Green LED indicates signal present
Mic: Indicates the MIC/LINE switch is in the “MIC” position
EQ: Individual Bass and Treble controls, center detent, 6 dB cut and boost
Bass +/- 6 dB (200 Hz turnover frequency)
Treble +/- 6 dB (4 kHz turnover frequency)
Mic Input Gain : -Infinity to +40 dBu
Line Input Gain : -Infinity to +4 dBu (+18 dBu maximum input level)
Limiter : Yes
Amplifier Design : Crown® Class-D
LF Driver : 1 x JBL 265F-1 380 mm (15”) Differential Drive® integrated woofer with dual 2” voice coils
HF Driver : 1 x JBL 2414H 37.5 mm (1.5”) annular polymer diaphragm, neodymium compression driver
Coverage Pattern : 100º H x 60º V nominal
Crossover Frequency : 1.7 kHz
Material : Polypropylene, multi-purpose main & monitor
Suspension / Mounting : 36 mm pole socket with stabilizing screw, 5 x M10 suspension points
Handles : One left/right side, one on top, with rubber grip
Finish : Black Granite
Grille : Powder coated perforated steel with acoustically transparent cloth backing
Net Weight : 14.8 kg (32.5 lb)
