![JBL EON712 | 12in - 127dB](https://kpodj-images.s3.amazonaws.com/img/products/jbl-eon712--2-way-12in---127-db.jpg)

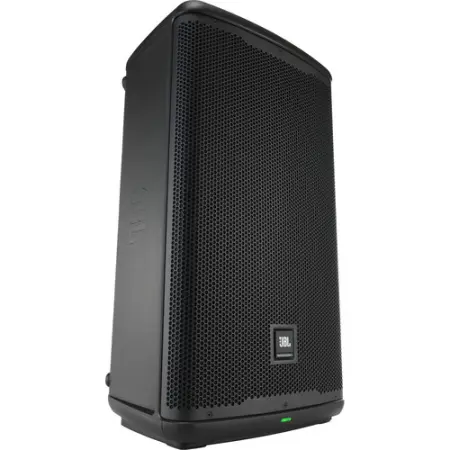

Designed to deliver professional-quality audio, the 12" JBL EON712 is a highly flexible, easy to use, 1300W powered portable PA speaker for today's working musicians, singer/songwriters, mobile DJs, and other sound providers. The speaker works in a variety of orientations and configurations for use as a main PA or stage monitor. When used as a main speaker, a pair of EON712's is well equipped to cover an audience of 300.
A push button and LCD menu screen on the back of the speaker allow you to physically switch between optimized use-case presets. The built-in DSP provides user control over the 3-channel mixer and the integrated dbx DriveRack, which offers Automatic Feedback Suppression (AFS), an 8-band output EQ, microphone ducking, and a 100ms speaker delay. The highly efficient 1300W amplifier powers the 12" woofer and 1" compression driver, which provide full-range audio (60 Hz to 20 kHz) with a sound pressure level powerful enough to ensure the entire audience can hear your performance. JBLs redesigned high-frequency horn ensures a uniform coverage front to back with a dispersion of 100°H x 60°V. The EON712 includes a power cord.
At a Glance
Custom-designed 12" woofer
2414H compression driver
Redesigned high-frequency horn
Power: 1300W
Frequency Response: 50 Hz to 20 kHz (-10 dB), 60 Hz to 20 kHz (-3 dB)
Max SPL: 127 dB
Dispersion: 100° H x 60° V

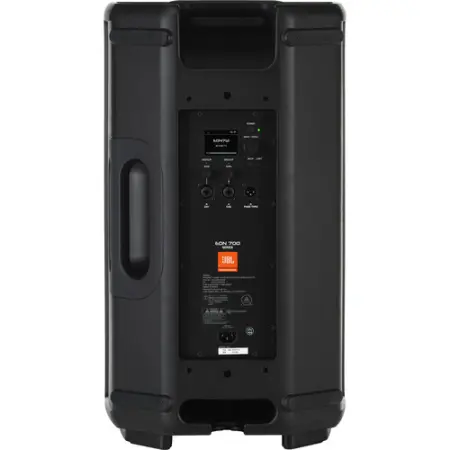

Audio I/Os: 2 XLR combo, 1 XLR passthrough
Pro-grade dbx DSP: Automatic Feedback Suppression, ducking, 100ms speaker delay, parametric EQ
Built-in 3-channel digital mixer
Color backlit LCD screen provides easy access to functions
Universal JBL Pro Connect app control
Bluetooth 5.0 streaming and control
Durable polypropylene cabinet and metal grille

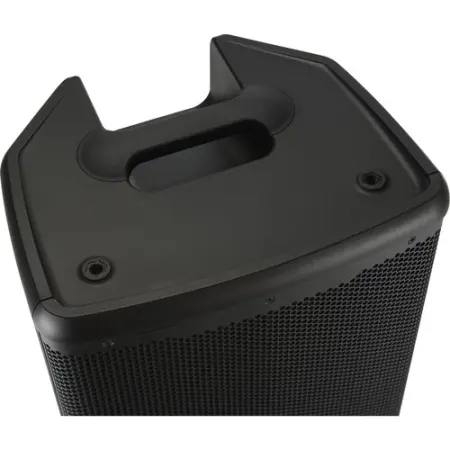

Two ergonomic handles simplify transport
Built-in pole mount and optional EON700 Universal Yoke Mount expand system configuration options
Stackable cabinets for easy storage
Iconic Acoustics, Superior Sound
The EON712’s newly engineered acoustic package features a completely redesigned woofer, JBL’s powerful 2414H compression driver and an optimized horn. It all adds up to superior JBL sound, with incredibly natural bass response and broad, even high-frequency dispersion.
Unrivaled Power Performance
The EON700 Series delivers robust sound reproduction that covers the needs of any mid-sized event, indoors or out. The EON712 is powered by 1300 watts of ultra-efficient amplification for clean, clear sound at any volume level. And with 127 dB max SPL, you’ll deliver that front-row experience all the way to the back of the room.
Dial Up Great Sound Fast with Pro-Grade DSP
Pro-grade DSP with 8-band EQ and optimized use-case presets will have you sounding your best at the push of a button. Speaking to a crowd? Ducking automatically lowers music when a mic signal is detected. Keep your stage sound clean—and your ears protected—with dbx Automatic Feedback Suppression, which stops the screech in its tracks.
Connectivity and Control
Built-in Bluetooth 5.0 audio streaming takes advantage of the latest protocol performance for decreased latency, broader range, and improved audio fidelity. Two Combo inputs and an XLR passthrough round out connectivity options. Access speaker functions via an EasyNav LCD screen or use the universal JBL Pro Connect app to make adjustments from anywhere in the venue.
Configure Your Way
The EON712’s available yoke- and pole-mounting accessories provide flexible configuration options, letting you tailor your system for music venues, corporate events, or worship services. And because speakers are stackable, they’re easier to store and transport.
Rugged and Reliable
Like every JBL speaker, the EON712 loudspeaker undergoes 100 hours of rigorous testing to ensure it will perform flawlessly and consistently in real-world conditions.
SPECIFICATIONS:
LF Voice Coil
2" / 50.8 mm
Signal Processing
Crossover
2 kHz (Internal)
EQ
No
Semi-Parametric EQ
No
Performance
Coverage Angle
100° H x 60° V
Connectivity
Network I/O
No
Wireless Connectivity
Bluetooth
Bluetooth
5.0
Power
AC Input Power
Universal:
100 to 120 VAC, 50 / 60 Hz
Physical
Mounting
4 x M10 Fly Point
1 x 1.4" / 36 mm Pole Socket (Bottom)
1 x Bracket Point
Cooling
Convection
Construction Material
Metal Grille, Polypropylene
Packaging Info
Package Weight
40 lb
Box Dimensions (LxWxH)
27.9 x 19.5 x 17.5"
