Designed to deliver professional-quality audio, the 15" JBL EON715 is a highly flexible, easy to use, 1300W powered portable PA speaker for today's working musicians, singer/songwriters, mobile DJs, and other sound providers.
The speaker works in a variety of orientations and configurations for use as a main PA or stage monitor. When used as a main speaker, a pair of EON715's is well equipped to cover an audience of 300.

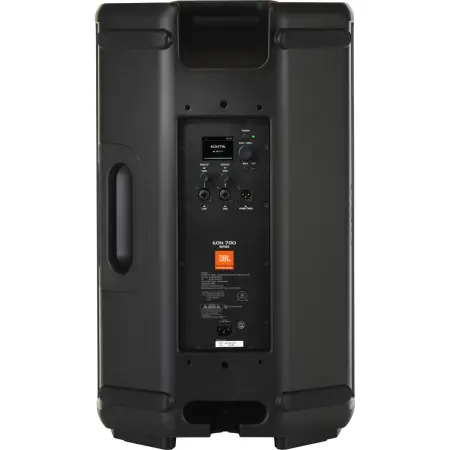

A push button and LCD menu screen on the back of the speaker allow you to physically switch between optimized use-case presets. The built-in DSP provides user control over the 3-channel mixer and the integrated dbx DriveRack, which offers Automatic Feedback Suppression (AFS), an 8-band output EQ, microphone ducking, and a 100ms speaker delay.
Two inputs (Ch.1 and Ch.2) feature combo XLR-1/4" connectors complete with gain controls and signal/clip indicators. The third channel is the Bluetooth 5.0 input for wireless audio streaming.
With independent inputs, the EON715 is a great choice for any singer/songwriter or solo performer with an instrument. You have independent control over mic and instrument levels, while the Bluetooth input provides backing tracks or incidental music between sets.
It also features an XLR Thru-Output for daisy-chaining to additional speakers or other audio equipment. All mono inputs are mixed to a mono signal internally and output through the Pass-Thru XLR connector. For a true stereo L/R operation, two EON715s are needed, with each to receive independent the left and right signals respectively.

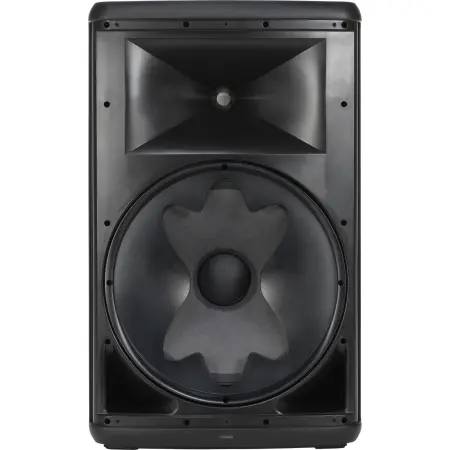

The highly efficient 1300W amplifier powers the 15" woofer and 1" compression driver, which provide full-range audio (55 Hz to 20 kHz) with a sound pressure level powerful enough to ensure the entire audience can hear your performance. JBLs redesigned high-frequency horn ensures a uniform coverage front to back with a dispersion of 90°H x 60°V. The EON715 includes a power cord.
Features:
At a Glance
Custom-designed 15" woofer
2414H compression driver
Redesigned high-frequency horn
Power: 1300W
Frequency Response: 45 Hz to 20 kHz (-10 dB), 55 Hz to 20 kHz (-3 dB)
Max SPL: 128 dB
Dispersion: 90° H x 60° V
Audio I/Os: 2 XLR combo, 1 XLR passthrough
Pro-grade dbx DSP: Automatic Feedback Suppression, ducking, 100ms speaker delay, parametric EQ
Built-in 3-channel digital mixer
Color backlit LCD screen provides easy access to functions
Universal JBL Pro Connect app control
Bluetooth 5.0 streaming and control
Durable polypropylene cabinet and metal grille
Two ergonomic handles simplify transport
Built-in pole mount and optional EON700 Universal Yoke Mount expand system configuration options
Stackable cabinets for easy storage
Iconic Acoustics, Superior Sound
The EON715’s newly engineered acoustic package features a completely redesigned woofer, JBL’s powerful 2414H compression driver and an optimized horn. It all adds up to superior JBL sound, with incredibly natural bass response and broad, even high-frequency dispersion.
Unrivaled Power Performance
The EON700 Series delivers robust sound reproduction that covers the needs of any mid-sized event, indoors or out. The EON715 is powered by 1300 watts of ultra-efficient amplification for clean, clear sound at any volume level. And with 128 dB max SPL, you’ll deliver that front-row experience all the way to the back of the room.
Dial Up Great Sound Fast with Pro-Grade DSP
Pro-grade DSP with 8-band EQ and optimized use-case presets will have you sounding your best at the push of a button. Speaking to a crowd? Ducking automatically lowers music when a mic signal is detected. Keep your stage sound clean—and your ears protected—with dbx Automatic Feedback Suppression, which stops the screech in its tracks.
Connectivity and Control
Built-in Bluetooth 5.0 audio streaming takes advantage of the latest protocol performance for decreased latency, broader range, and improved audio fidelity. Two Combo inputs and an XLR passthrough round out connectivity options. Access speaker functions via an EasyNav LCD screen or use the universal JBL Pro Connect app to make adjustments from anywhere in the venue.
Configure Your Way
The EON715’s available yoke- and pole-mounting accessories provide flexible configuration options, letting you tailor your system for music venues, corporate events, or worship services. And because speakers are stackable, they’re easier to store and transport.
Rugged and Reliable
Like every JBL speaker, the EON715 loudspeaker undergoes 100 hours of rigorous testing to ensure it will perform flawlessly and consistently in real-world conditions.
Specifications:
Portable PA System
Speaker Configuration 1 x 2-Way Loudspeaker
Number of Input Channels 3 (2 x Mono, 1 x Stereo)
Amplifier Power Rating 1 x 1300 W Peak
1 x 650 W RMS
Speakers
Enclosure Type Bass-Reflex
HF Driver 1 x 1" / 25.4 mm Horn-Loaded Compression Driver
LF Driver 1 x 15" / 381 mm Woofer
LF Voice Coil 2" / 50.8 mm
Magnet LF Driver:
Ferrite
HF Driver:
Neodymium
Signal Processing
Crossover 1.9 kHz (Internal)
Input Pad None
EQ None
Semi-Parametric EQ None
Effects None
Filters None
Performance
Frequency Response 55 Hz to 20 kHz -3 dB
Frequency Range 45 Hz to 20 kHz -10 dB
Maximum SPL 128 dB (Peak)
Coverage Angle 90° H x 60° V
Gain Range 0 dB to +36 dB
I/O Impedance Input:
50 Kilohms (Unbalanced, Mono)
100 Kilohms (Balanced, Mono)
Connectivity
Audio I/O 2 x Combo XLR-1/4" 3-Pin Female Balanced/Unbalanced Mic/Line Input
1 x XLR 3-Pin Male Balanced Line Thru/Output
USB None
Network I/O None
Wireless Connectivity Bluetooth
Bluetooth
Bluetooth 5.0
AC Input Power Universal:
100 to 120 VAC, 50 / 60 Hz
Physical
Transport Options 2 x Handle
Mounting 4 x M10 Fly Point
1 x 1.4" / 36 mm Pole Socket (Bottom)
1 x Bracket Point
Cooling Convection
Construction Material Metal Grille, Polypropylene
Dimensions 28.2 x 17.2 x 14.1" / 716 x 438 x 358 mm
Weight 37.48 lb / 17 kg
