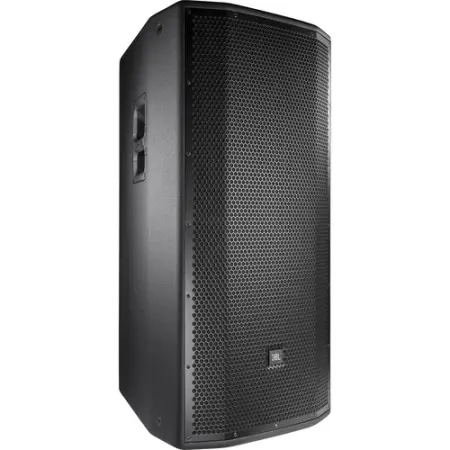

JBL PRX835W
$1,609.00
The PRX835W from JBL is a 3-way powered loudspeaker designed for main PA applications with extensive Wi-Fi control over the on-board DSP. Well suited for event halls, bands, DJ systems, clubs, bars, schools, and churches, the speaker utilizes two 750W Class-D amplifiers delivering a total of 1500W to the 15" woofer, 6.5" mid-frequency driver, and 1.5" compression driver, which combine to offer a frequency range of 41 Hz to 20 kHz at 138 dB maximum SPL output.
The built-in Wi-Fi offers wireless control of the system from anywhere in the venue using the free PRX Connect app for iOS and Android devices. The app controls levels, an 8-band parametric EQ, user presets, and up to 50ms of user-defined delay to fine-tune your setup. The durable 18mm plywood enclosure is coated with an Obsidian DuraFlex finish and a powder-coated steel grille with acoustical transparent black-cloth backing.
Features:
Built in Wi-Fi for wireless control of your system from anywhere in the venue
Free PRX Connect mobile app provides wireless control over levels, parametric EQ, user presets, and up to 50ms of user delay to fine-tune your sound
Class-leading 1500-watt amplifier delivers ample power to fill your venue
JBL Differential Drive transducers for higher SPL in a lightweight design
Next-generation JBL neodymium compression drivers
Crown-designed input panel with XLR, 1/4”, and RCA inputs, plus XLR loop-through
Durable construction with wooden cabinets, tour-proven DuraFlex finish, and dent-resistant cloth-backed 16-gauge grilles
Universal power supply for worldwide compatibility
Demanding 100-hour test regimen ensures reliable performance
Intelligent variable-speed fan activates only when needed to reduce noise
Scalable system that integrates with other JBL portable powered PAs
JBL PRX835W Specs:
PA Speaker
Configuration Active 3-Way
Enclosure Type Bass-Reflex Loudspeaker
Total Power Capacity 1500 W
Amplifier Power Rating 2 x 750 W
Amplifier Class Class-D
Drivers
HF Driver 1 x 1.5" / 3.8 cm Polymer Compression Driver
MF Driver 1 x 6.5" / 16.5 cm Horn-Loaded
LF Driver 1 x 15" / 38.1 cm Woofer
Magnet HF:
Neodymium
Performance
Frequency Range 41 Hz to 20 kHz -10 dB
Frequency Response 48 Hz to 20 kHz ±3 dB
Maximum SPL 138 dB (Peak)
Coverage Angle 90° H x 50° V
Directivity 10.5 dB (Directivity Index)
11.2 dB (Directivity/Q Factor)
I/O Impedance Input:
20 Kilohms (Balanced)
10 Kilohms (Unbalanced)
Connectivity
Audio I/O 2 x Combo XLR-1/4" TRS Balanced Input
2 x RCA Unbalanced Input
Signal Processing
Crossover Low-Pass:
580 Hz
High-Pass:
2.1 kHz
EQ Presets (Factory)
Dynamic Processing Limiter
Power
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Physical
Mounting 12 x M10
Handles 2
Construction Material Plywood
Dimensions 36.9 x 17.5 x 21.2" / 93.7 x 44.5 x 53.8 cm
Weight 77 lb / 34.9 kg
