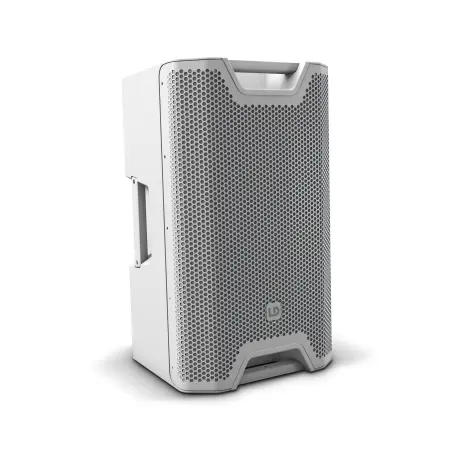

This full-range loudspeaker impresses with its outstanding sound, even at low frequencies. The ICOA 12 A BT W by LD Systems is a genuine all-rounder that offers unparalleled features for its class. Its coaxial design, rotating, BEM-optimised CD horn and extensive and precisely calibrated DynX DSP presets make this powered 12" loudspeaker exceptionally flexible.
The outstanding bass reproduction from the horn-loaded woofer makes the LD ICOA 12 A BT W the ideal choice for musicians, bands, entertainers and dance schools. It also allows DJs to play sets without the need for a subwoofer. Deployed vertically, the speaker impresses as a satellite; horizontally, it's excellent in suspended systems or as a floor monitor. The efficient class-D power amplifier delivers 126 dB max. SPL and 1200 W peak performance. The white version with a white grille blends in subtly into any environment and doesn't distract.
Drawing on DynX DSP technology by LD Systems, the speaker delivers perfect performance with maximum clarity and power under all conditions. 4 presets, a 3-band EQ and a delay function facilitate optimal adjustment of the sound to the venue conditions. The 2 line/mic input channels with individual gain controllers, plus mono mix output, allow a variety of signal sources to be connected.

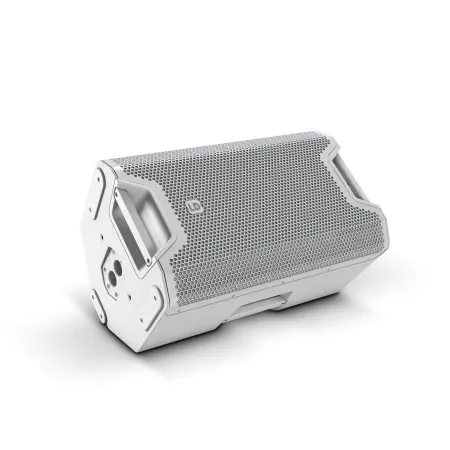

Thanks to its shock-resistant front grille and ideal 55° tilt angle, the LD ICOA 12 A BT W is also outstanding as a floor monitor. Placed vertically, the 36 mm dual tilt stand attachment offers the choice of a 0° or 5° tilt angle for optimally adapting the system to the local acoustic environment.
Extensive and smart accessories for installation and transport are optionally available. 4 aluminium handles with an ergonomic rubber surface provide optimal grip when carrying the speaker.
FEATURES:
A genuine all-rounder for full-range, satellite and monitor applications
126 dB max. SPL and 1200 W peak power
Vertical and horizontal use thanks to coaxial design with rotating, BEM-optimised CD horn (Patent pending)
Horn-loaded woofer
DynX DSP with 4 presets, 3-band EQ and delay function
2 line/mic input channels with individual gain controllers plus mono mix output; Bluetooth® streaming with the BT model
36 mm dual tilt stand attachment with 0° and 5° tilt angle, 55° monitor angle with sturdy stand
6 x M10 flying points
Shock-resistant front grille for optimal protection of the speaker
4 aluminium grips with ergonomic, rubber surface
Extensive, optionally available accessories for installation and transport
SPECIFICATIONS:
Product type PA loudspeaker
Type Powered
Color White (RAL 9003)
Bluetooth Audio Decoder Bluetooth 4.0
Low/mid Woofer dimensions 12 "
Woofer dimensions (mm) 304.8 mm
Woofer magnet Ferrite
Woofer brand Custom-made
Horn BEM optimized CD Horn
HF driver dimensions 1 "
HF driver dimention (mm) 25.4 mm
HF driver magnet Ferrite
HF driver brand Custom-made
HF driver voice coil 1.4 "
HF driver voice coil 35 mm
Amplifier Class D
Dispersion (H x V) 90° x 50°
System Power (RMS) 300 W
Peak power 1200 W
Frequency response 50 Hz - 20000 Hz
Crossover frequency kHz 2 kHz
Max. SPL (Peak) 126 dB
Protection circuits Multiband limiter, over voltage, over-current, thermal overload

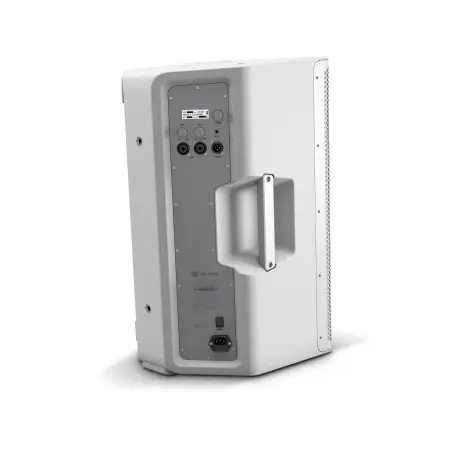

Controls 2 x gain, On / off switch, Rotary/push encoder
Indicators LC display
Mic/ line inputs 2
Mic-/ Line Input Connectors 6.3 mm jack Combination sockets (symmetrical), XLR
Line inputs 1
Line input connectors 3.5 mm TRS
Line outputs 1
Line output connectors XLR
Operating voltage SMPS
Power consumption 150 W
Ambient temperature (in operation) 0 - 40 °C
Operating voltage 100 V AC - 240 V AC, 50 - 60 Hz
Relative Humidity < 80 %, not condensing
Fuse T4AL 250 V
Cabinet material Polypropylene
Cabinet construction Bass Reflex
Mounting 36mm flange (0°, 5°), 6 x M10 flying points
Monitor angle 55 °
Width 375 mm
Height 635 mm
Depth 396 mm
Features Bluetooth
Weight 19,95 kg
Accessories (included) Power cord
LDS ICOA12ABTW
(LD Systems ICOA 12 Active Bluetooth White)
