RCF ART310A MK3

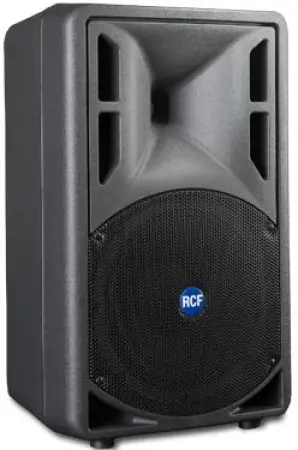

RCF ART 310-A MK3 (RCF 310A MKIII)

ART 310-A is a 10” reference speaker.

Thanks to its incredible amplifier’s power, the high quality transducers and very compact size cabinet, it is the ideal speaker in all the situations where the output of a PA system and the size of a monitor are important.
The 10” woofer features a 2.0” voice coil and delivers very high efficiency and controlled bass reproduction.
It can be used for live sound, playback, monitoring, corporate events and presentations.
The ART 310-A is very easy to transport everywhere.

FEATURES:

800 Watt Peak, 400 Watt RMS, bi-amplification
127 dB max spl
90 x 70, Wide dispersion constant directivity horn
10" high power woofer 2.5" voice coil
1" HF driver, titanium dome, 1.5" voice coil

ACOUSTICAL SPECIFICATIONS:

Frequency Response -3 dB:50 Hz ÷ 20000 Hz
Max SPL:127 dB
Horizontal coverage angle:90°
Vertical coverage angle:70°
Compression Driver:1", 1.5" v.c.
Woofer:10", 2.0" v.c

INPUT/OUTPUT SECTION:

Input signal:bal/unbal
Input connectors:xlr
Output connectors:xlr
Input sensitivity:0 dBu
Mic. Input Sensitivity:-40

PROCESSOR SECTION:

Crossover frequencies:1800 Hz
Protections:DC / short cir.
Limiter:Fast limiter
Controls:Volume/EQ settings

AMPLIFIER SPECIFICATIONS:

Total power:800 W PEAK
   High frequencies:200 W PEAK
   Low frequencies:600 W PEAK
Total power:400 W RMS
   High frequencies:100 W RMS
   Low frequencies:300 W RMS
Cooling:Convection
Connections:VDE connector in

CABINET:

Cabinet Material:Composite PP
Hardware:2xM10 flying p.
Handles:1 top
Pole Mount/Cap:Yes
Colour:Black

PHYSICAL SPECIFICATIONS:

Height:537 / 21.14 mm/inch
Width:337 / 13.26 mm/inch
Depth:315 / 12.40 mm/inch
Net Weight:12.6 / 27.77 kg/lbs
