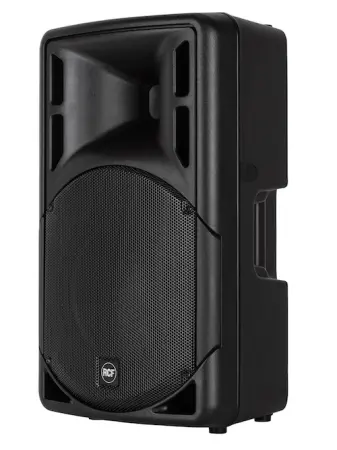

RCF ART315A MK4
DISCONTINUED
This product has been discontinued by the manufacturer. Please contact us to find a replacement.
Active speakers for live sound reinforcement and stage monitoring as well as distributed sound systems for clubs, music venues and corporate events. ART 315-A MK4 is the ideal speaker when an exceptional full range, outstanding bass reproduction and accurate high frequency delivery are required.
Features:
129 dB Max SPL
800 WATT 2-way peak power
DSP Processing with FiRPHASE
15" woofer, high power 2.5" voice coil
1" HF driver, mylar dome, 1.5" voice coil
Specifications:
ACOUSTICAL SPECIFICATIONS
Frequency Response -3 dB:45 Hz ÷ 20000 Hz
Max SPL:129 dB
Horizontal coverage angle:90°
Vertical coverage angle:60°
Compression Driver:1", 1.5" v.c.
Woofer:15", 2.5" v.c.
INPUT/OUTPUT SECTION
Input signal:bal / unbal
Input connectors:XRL, Jack
Output connectors:XLR
Input sensitivity:-2 dBu/+4 dBu
Mic. Input Sensitivity:-32 dBu
PROCESSOR SECTION
Crossover frequencies:1800 Hz
Protections:Thermal, RMS
Limiter:Soft Limiter
Controls:Volume, Boost, Mic/Line
AMPLIFIER SPECIFICATIONS
Total power:800 W PEAK
High frequencies:200 W PEAK
Low frequencies:600 W PEAK
Total power:400 W RMS
High frequencies:100 W RMS
Low frequencies:300 W RMS
Cooling:Convection
Connections:VDE
CABINET
Cabinet Material:Composite PP
Hardware:4xM10 flying p.
Handles:1 Top, 2 Side
Pole Mount/Cap:Yes
Grille:Steel
Colour:Black
PHYSICAL SPECIFICATIONS
Height:680 / 26.77 mm/inch
Width:405 / 15.94 mm/inch
Depth:345 / 13.58 mm/inch
Net Weight:17.1 / 37.7 kg/lbs
The RCF 315A is a professional powered speaker with a digital amplifier. They are not the lightest speakers out there, weighing in at 44lbs and their price point is higher than some speakers in this category. RCF is a transducer manufacturer (that is the 15” “round thing” in the speaker cabinet) because of that they can design the transducer specifically for the cabinet. This allows them to tailor the crossover frequencies between the woofer and tweeter and the the port (the hole in the cabinet) and the woofer. The result is a much better clarity of sound throughout the frequency spectrum. Having a digital amp keeps the weight down allowing the woofer to have a larger magnet needed for the extended bass response. the input section covers all bases with XLR (switchable line/Mic level) ¼”, EQ loudness or flat switch. Pro’s: Great sound with no distortion, Great input section Cons: Price is high,
