Features
1000 Watts (Peak) 500 Watts (Program)
15-inch woofer with 2.5-inch voice coil
3 Channels plus Master level
1-inch compression driver
90° x 40° HF dispersion
Polypropelene cabinet construction
Bluetooth streaming
3 performance modes (Concert, Club, Monitor)
Overview

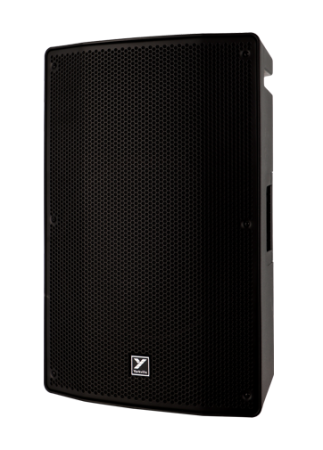

The YXL cabinets use a single driver and 90 x 60 degree horn with 1-inch throat and 1-inch compression driver. Constructed from strong Polypropylene, YXL is poised to uphold Yorkville's reputation for reliability and durability. The cabinets can be positioned upright or used as a monitor wedge.
Designed as an all-purpose speaker with the Musician & DJ in mind, each YXL cabinet features 3 channels. The cabinet supports Bluetooth streaming and EQ pushbutton controls for Concert, Club & Monitor modes.
| System Type | Active Loudspeaker |
| Active or Passive | Active |
| Power Rating (Watts) | 500 Watts Program (1000 Watts Peak) |
| Max SPL (dB) | 127dB Continuous |
| Frequency Response (Hz +/- 3dB) | 45 - 16k (Hz +/-3dB) |
| Dispersion (°H x °V) | 90 x 40 |
| Crossover Frequency (Hz) | 1.6kHz |
| HF Horn | Integrated into Baffle |
| LF Driver(s) | 15-inch (2.5-inch voice coil) |
| LF Power Rating(Watts) | 450 Watts Program (900 Watts Peak) |
| HF Power Amplifier (Watts) | 50 Watts Program (100 Watts Peak) |
| HF Amplifier Type | Class A/B |
| LF Amplifier Type | Class D |
| Cooling Scheme | Speed controlled fan |
| Power Cable | Yes |
| Power Switch | Yes |

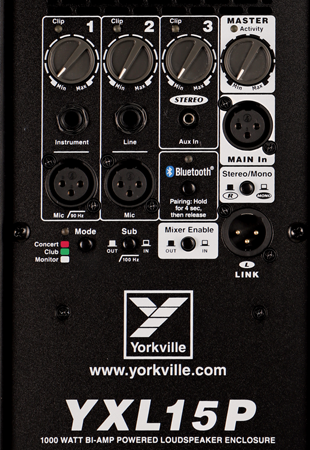

| Mixer Controls | 3 recessed dial controls |
| Level Controls | x3 Chanels + Master |
| EQ Controls | Push button select, Concert, Club, Monitor |
| Limiter | Multiband excursion, RMS, rail |
| Other Controls / Features | 100 Hz HP with Sub, Mixer IN/OUT, Stereo/Mono out, 3.5mm Aux in, BT streaming |
| Feet | Rubber |
| Bar Handles | 2 x Side / 1 x Back |
| Flying Hardware | 2 (Top), 1 (Pullback) |
| Optional Flying Hardware | Yes |
| Enclosure Materials | Polypropelene, Metal grille |
| Baffle Material | Polypropylene |
| Grille | Powder Coated Steel with Grille Cloth |
| Other Details | Rubber feet on bottom and side with the monitor Wedge |
| Dimensions (DWH xbackW, inches) | 14.75 x 17 x 27.375 |
| Dimensions (DWH xbackW, cm) | 37.5 x 43.18 x 70.4 |
| Weight (lbs/kg) | 45 / 20.4 |
