Chauvet Pro COLORado PXL Curve 1

IP65 RGBW Moving Batten

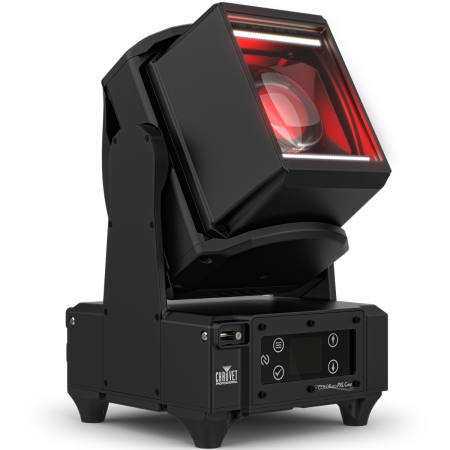

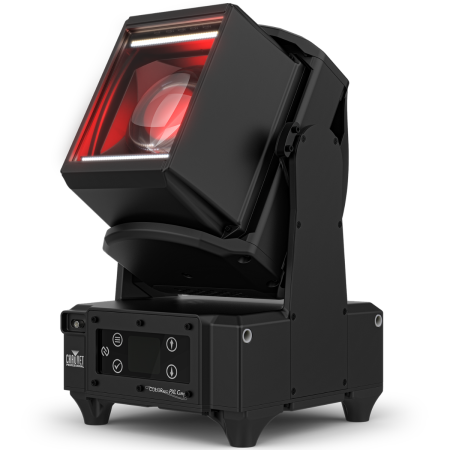

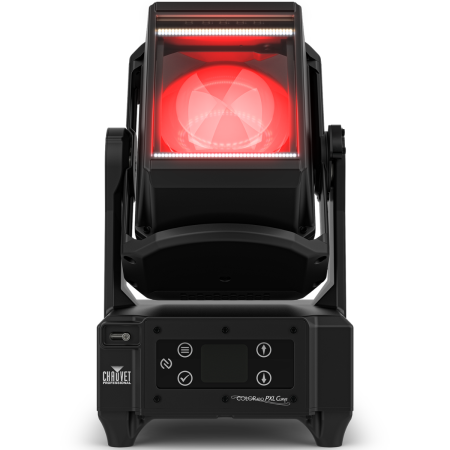

CHAUVET Professional COLORado PXL Curve 1 is a compact, IP65-rated RGBW beam and wash fixture that combines motorized pan, tilt, and zoom with dual linear warm white and cool white strobe LEDs. Designed for individual use or tightly spaced arrays, it delivers dynamic movement, smooth color blending, pixel-mapped effects, and weather-resistant construction for touring, live events, broadcast, festivals, and installations.

CHAUVET Professional COLORado PXL Curve 1 Competitive Differences

• Single 120W RGBW LED combines beam and wash output with motorized pan, tilt, and zoom.
• Dual linear strobe arrays use 160 SMD LEDs with 80 cool white and 80 warm white LEDs for high-impact strobe and blinder effects.
• Eight-section control of the warm white and cool white strobe cells supports detailed chases and pixel-mapped effects.
• Alignment pins help maintain consistent pixel pitch when multiple fixtures are mounted side by side.
• IP65-rated construction and data connections support indoor and outdoor production environments.
• DMX, Art-Net, sACN, RDM, and NFC provide flexible control, addressing, monitoring, and configuration options.

CHAUVET Professional COLORado PXL Curve 1 Description

The CHAUVET Professional COLORado PXL Curve 1 combines a 120W quad-color RGBW LED with dual warm and cool white linear strobe sections in a lightweight moving fixture. Its variable beam, wash, and wide strobe effects allow lighting designers to move between concentrated aerial looks, broader color coverage, and high-output white effects from one compact unit.

Motorized movement provides 60° of pan and 190° of tilt, while the motorized/manual zoom system expands the available range of beam and wash looks. Electronic dimming, four dimmer curves, two dimming modes, Move-in-Black, and a strobe rate of up to 25 Hz provide additional control for programming smooth transitions or fast-paced effects.

The fixture is engineered for building larger visual arrays. Alignment pins maintain consistent spacing between adjacent units, while matched RGBW color blending helps create a unified appearance across multiple COLORado PXL fixtures. Its 15 lb design also keeps handling and rigging manageable when deploying multiple units.

For integration into professional lighting systems, COLORado PXL Curve 1 supports DMX, Art-Net, sACN, RDM, and NFC. IP65-rated 5-pin XLR and etherCON data connections complement the weather-resistant housing, making the fixture suitable for touring productions, festivals, broadcast environments, corporate events, and permanent installations.

COLORado PXL Curve 1 Features

• IP65-rated RGBW moving beam, wash, and strobe fixture
• Single 120W quad-color RGBW LED
• 160 SMD strobe/blinder LEDs with 80 cool white and 80 warm white LEDs
• Motorized pan, tilt, and zoom
• 60° pan and 190° tilt range
• Eight-section control of warm white and cool white strobe cells
• Alignment pins maintain consistent pixel pitch in multi-fixture arrays
• Electronic dimmer and shutter/strobe
• 0 to 25 Hz strobe rate
• Four dimmer curves and two dimming modes
• Color temperature presets
• Move-in-Black functionality
• DMX, Art-Net, sACN, RDM, and NFC control support
• 24 or 45 DMX channels
• 24 or 45 Art-Net channels

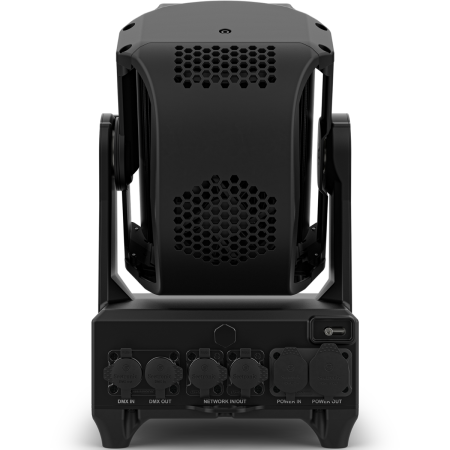

• IP65-rated 5-pin XLR and etherCON data connections
• Seetronic Powerkon power input and output
• Slotted Omega bracket for truss mounting

COLORado PXL Curve 1 Specifications

• Light Source: 1 quad-color RGBW LED, 120W
• RGBW LED Life Expectancy: 50,000 hours
• Strobe/Blinder Light Source: 160 SMD LEDs, 80 cool white and 80 warm white
• Strobe LED Life Expectancy: 50,000 hours
• Color Temperature at Full Output: 22,089 K
• Beam Angle Without Strobe: 3.4° to 30.2°
• Beam Angle With Strobe: 3.4° to 32.1°
• Field Angle Without Strobe: 4.4° to 38.7°
• Field Angle With Strobe: 4.3° to 66.3°
• Cutoff Angle Without Strobe: 4.7° to 40.8°
• Cutoff Angle With Strobe: 4.6° to 144.3°
• Zoom Range Without Strobe: 3.4° to 40.8°
• Zoom Range With Strobe: 3.4° to 144.3°
• Lumens Without Strobe: 1,558
• Lumens With Strobe: 4,630
• Illuminance Without Strobe at 3.4°: 14,009 lux at 5 m
• Pan/Tilt: 60°/190°
• Zoom: Motorized/Manual
• Strobe Rate: 0 to 25 Hz
• Dim Modes: 2
• Dim Curves: 4
• Control Protocols: Art-Net, sACN, DMX, RDM, NFC
• DMX Channels: 24 or 45
• Art-Net Channels: 24 or 45
• Modes/Personalities: 2 personalities (24, 45)
• Data Connectors: 5-pin IP65 XLR, etherCON
• Power Input: Seetronic Powerkon
• Power Output: Seetronic Powerkon
• Power Cable Length: 5 ft (1.5 m)
• Dimensions: 7.83 x 8.46 x 12.99 in (199 x 215 x 330 mm)
• Weight: 15 lb (6.8 kg)
• SKU: COLORADOPXLCURVE1

What's In The Box

• COLORado PXL CURVE 1 fixture
• Power cord - Edison to PowerKon IP
• Omega bracket with mounting hardware
